Timing belt 540 H 075 (19,05 mm) optibelt ZR
Code: 254117
Product detailed description

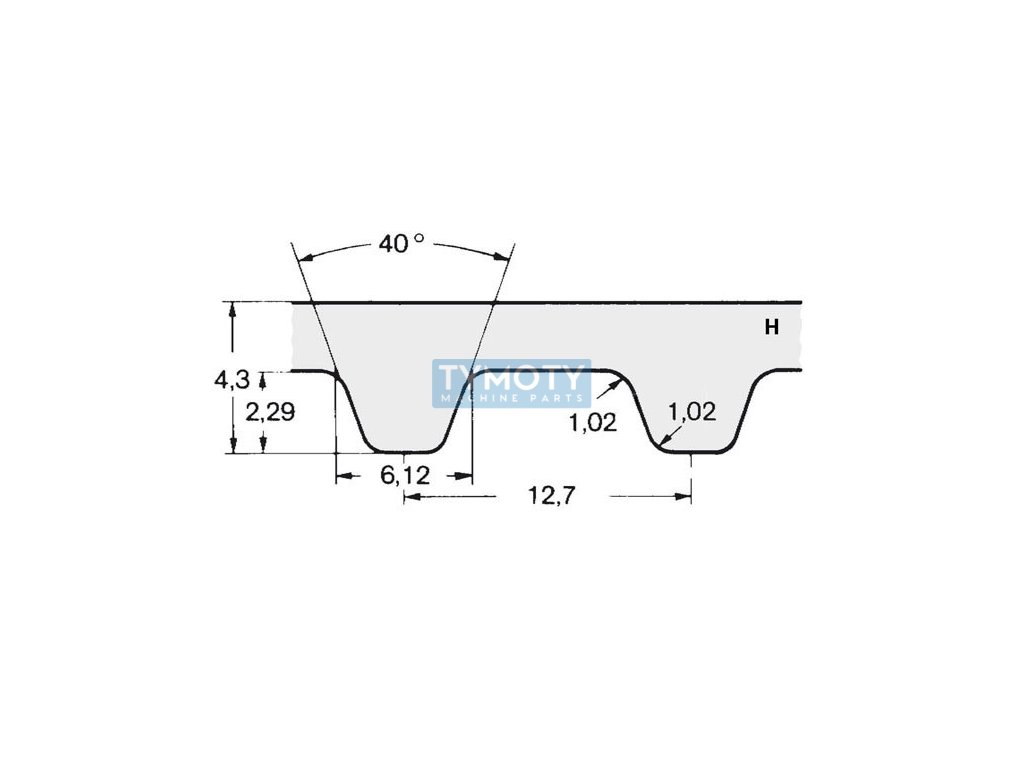

Timing belt H 540 - 075 timing belt optibelt ZR is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 540 H 075. The H profile defines a tooth pitch of 12.7 mm and a height of 4.3 mm. The timing belt is 1371.6 mm long and has a width of 19.05 mm. The width can be adjusted as desired. The exact number of teeth is 108 pcs, which will help us determine the length. The trade name ZR. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > H (4.0x2.29) > width 075 (19.05 mm) |
|---|---|
| Weight: | 0.111 kg |
| EAN: | 4014486004212 |
| Calculation length Lw, Lp, mm: | 1371,6 |
| Height H (mm): | 4,3 |
| Height H1 (mm): | 2,29 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 108 |
| Product: | ZR |
| Profile: | H |
| Spacing t (mm): | 12,7 |
| Width B (mm): | 19,05 |
| Číslo výrobce: | 1793584 |
| Řada: | 540 H 075 |
| Typ: | Rozvodový řemen ozubený |
