Timing belt 450 5M 15 optibelt Omega HP
Code: 252787
Product detailed description

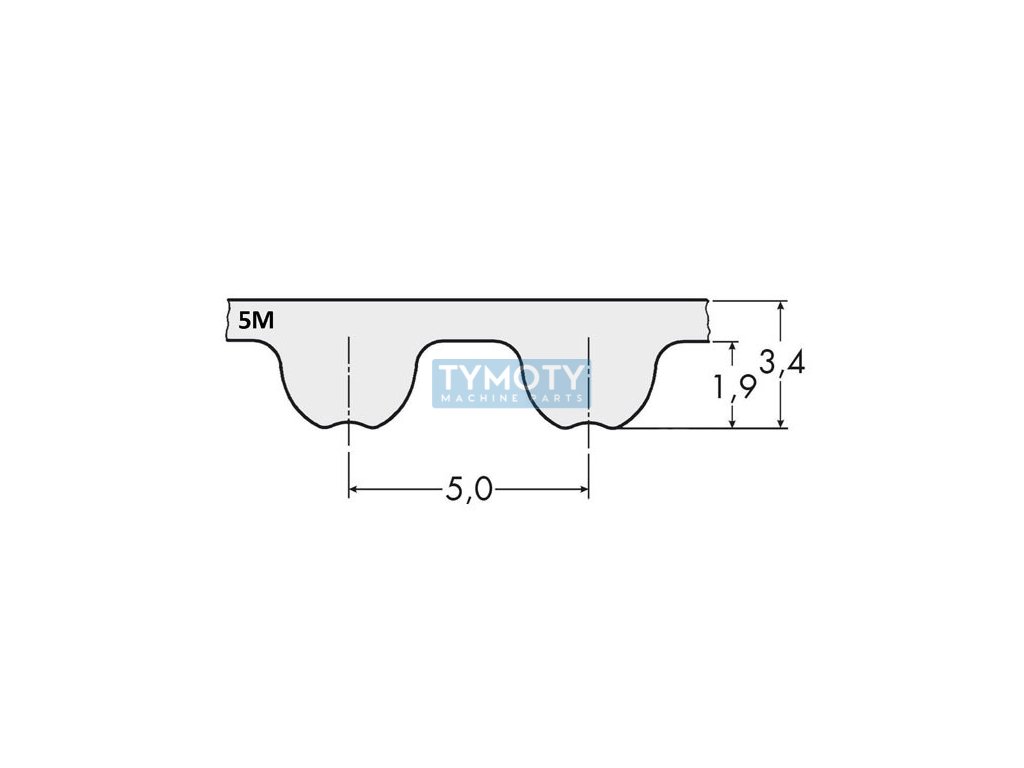

Timing belt 5MHP 450 - 15 mm ( RPP5M-450-15 ) is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 450 5MHP 15. The 5MHP profile defines a tooth pitch of 5 mm and a height of 3.4 mm. The timing belt is 450 mm long and has a width of 15 mm. The width can be adjusted as desired. The exact number of teeth is 90 pcs, which will help us determine the length. The trade name OMEGA HP. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > 5M (5x3.8) > width 15 mm |
|---|---|
| Weight: | 0.015 kg |
| EAN: | 4014486184853 |
| Calculation length Lw, Lp, mm: | 450 |
| Height H (mm): | 3,4 |
| Height H1 (mm): | 1,9 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 90 |
| Product: | OMEGA HP |
| Profile: | 5M |
| Spacing t (mm): | 5 |
| Width B (mm): | 15 |
| Číslo výrobce: | 1623240 |
| Značení: | 450 5MHP 15 |
| Řada: | 450-SLV5-15 |
| Typ: | Rozvodový řemen ozubený |
