Timing belt 424 8M 20 Gates Powergrip HTD
Code: 548512
Product detailed description
The involute geometry of the PowerGrip® HTD® belt teeth eliminates stress concentration at the tooth roots, providing higher performance and longer life. PowerGrip® HTD® belts 8M, 14M and 20M (RPP8, RPP14) are used in high-performance drives in the machine tool, paper and textile industries where durability and low maintenance are required.Identification
Three-digit number on the back of the belt.
Alternative marking
- Strongbelt M / Optibelt Omega HTD / Contitech Synchrobelt HTD / Megadyne RPP / SKF HiTD / PIX X treme HTD / Goodyear Hi-Performance Pd / Bando Synchro-Link
- Load capacity up to 1000 kW.
- No slippage. The PowerGrip® HTD® belt teeth and pulley groove mesh smoothly, reducing speed fluctuations.
- Wider speed range.
- Economical operation. No need to lubricate or adjust due to stretching and wear.
- High mechanical efficiency. The belt design minimizes heat build-up, and because friction is not required to transfer the load, belt tension is lower.
- Constant speeds.
- Long, trouble-free life (due to excellent abrasion resistance) in many applications where metal components such as chains and sprockets are used.
Additional parameters
| Category: | Belts > flat gear > 8M (8x6) > width 20 mm |
|---|---|
| Weight: | 0.05 kg |
| EAN: | 5412571288148 |
| Calculation length Lw, Lp, mm: | 424 |
| Cord type: | GL |
| Country of origin: | GB |
| Height H (mm): | 6 |
| Manufacturer's brand: | Gates |
| Material: | CR |
| Number of teeth (splines): | 53 |
| Product: | POWERGRIP HTD |

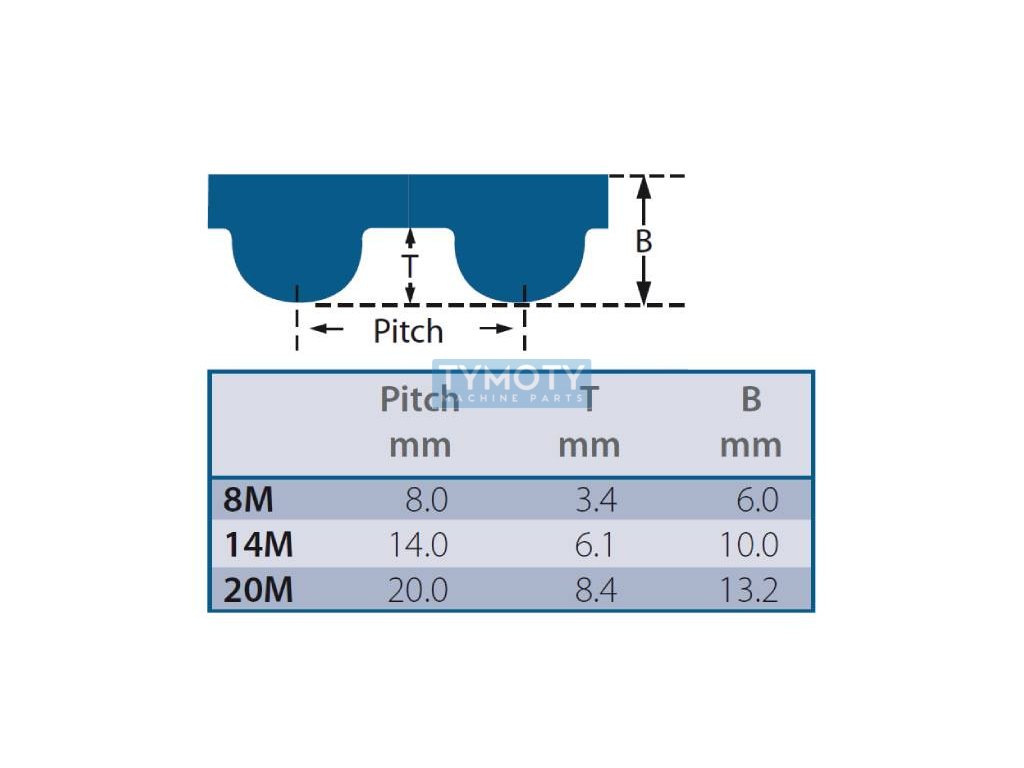

| Profile: | 8M |
| Spacing t (mm): | 8 |
| Width B (mm): | 20 |
| Číslo výrobce: | 9293-50007 |
| Značení: | HTD 424 8M 20 |
| Řada: | 424-RPP8-20 |
| Typ: | ozubený |
