Timing belt 420 3M 15 optibelt Omega
Code: 249961
Product detailed description

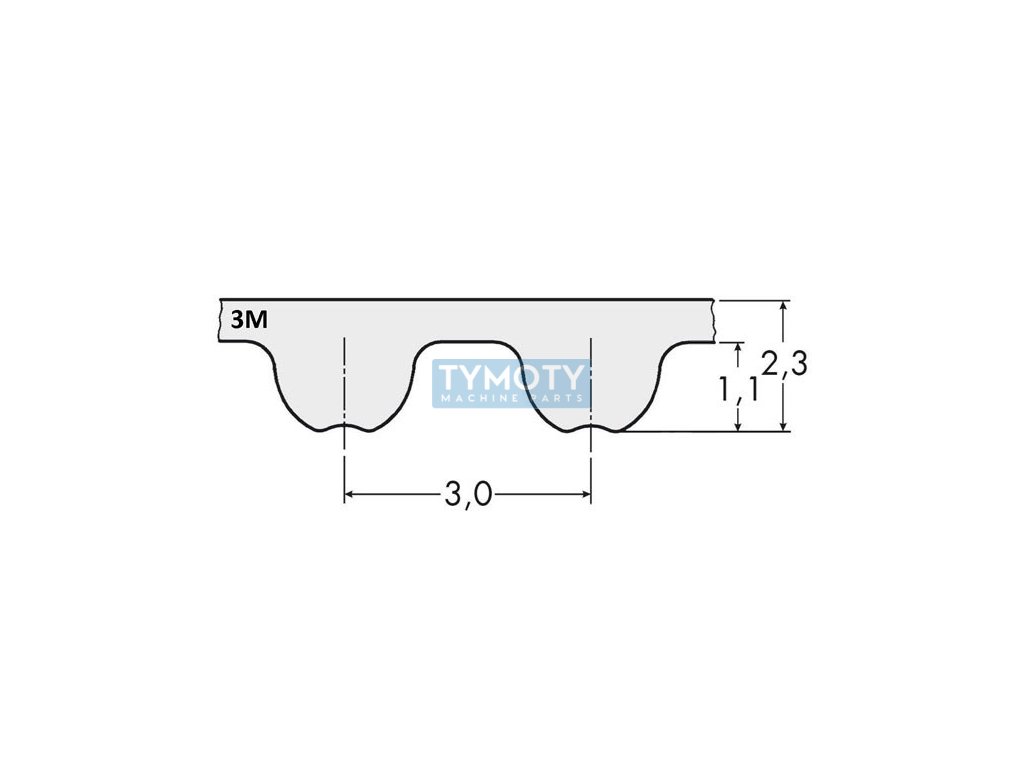

Timing belt 3M 420 - 15 mm is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 420 3M 15. The 3M profile defines a tooth pitch of 3 mm and a height of 2.3 mm. The timing belt is 420 mm long and has a width of 15 mm. The width can be adjusted as desired. The exact number of teeth is 140 pcs, which will help us determine the length. The trade name OMEGA. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > 3M (3x2.4) > width 15 mm |
|---|---|
| Weight: | 0.018 kg |
| EAN: | 4014486041415 |
| Calculation length Lw, Lp, mm: | 420 |
| Height H (mm): | 2,3 |
| Height H1 (mm): | 1,1 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 140 |
| Product: | OMEGA |
| Profile: | 3M |
| Spacing t (mm): | 3 |
| Width B (mm): | 15 |
| Číslo výrobce: | 1695927 |
| Značení: | 420 3M 15 |
| Řada: | 420-RPP3-15 |
| Typ: | ozubený řemen |
