Timing belt 410 H 075 (19,05 mm) optibelt ZR
Code: 254067
Product detailed description

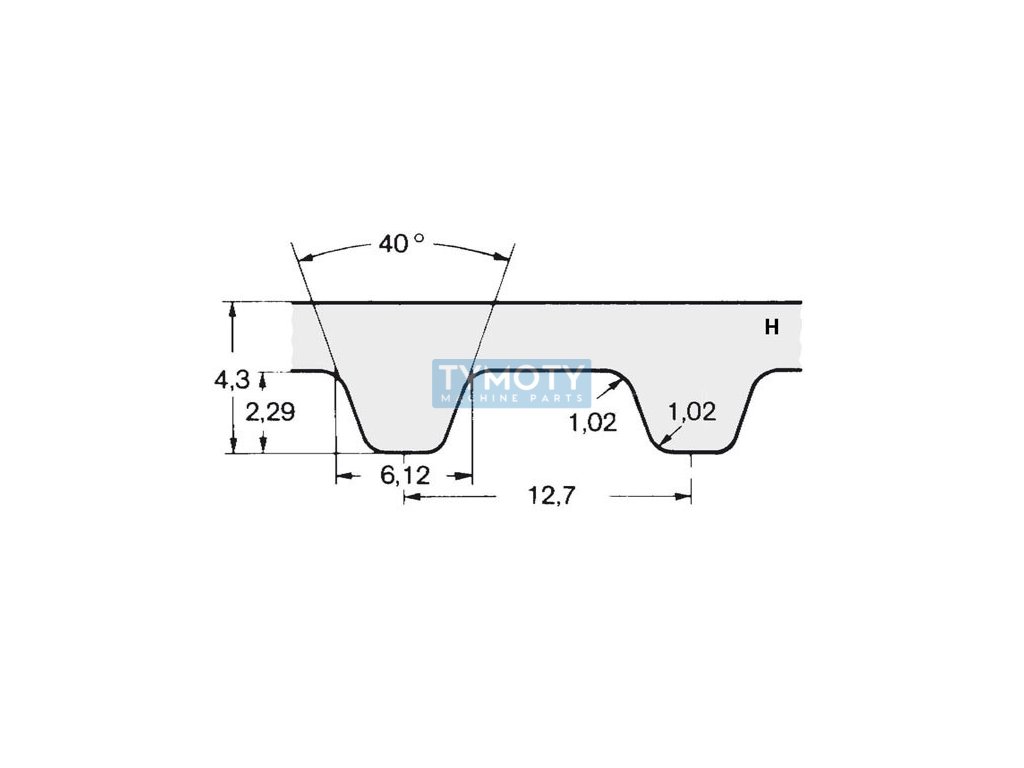

Timing belt H 410 - 075 timing belt optibelt ZR is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 410 H 075. The H profile defines a tooth pitch of 12.7 mm and a height of 4.3 mm. The timing belt is 1041.4 mm long and has a width of 19.05 mm. The width can be adjusted as desired. The exact number of teeth is 82 pcs, which will help us determine the length. The trade name ZR. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > H (4.0x2.29) > width 075 (19.05 mm) |
|---|---|
| Weight: | 0.076 kg |
| EAN: | 4014486288100 |
| Calculation length Lw, Lp, mm: | 1041,4 |
| Height H (mm): | 4,3 |
| Height H1 (mm): | 2,29 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 82 |
| Product: | ZR |
| Profile: | H |
| Spacing t (mm): | 12,7 |
| Width B (mm): | 19,05 |
| Číslo výrobce: | 1608586 |
| Řada: | 410 H 075 |
| Typ: | Rozvodový řemen ozubený |
