Timing belt 405 5M 15 Gates Powergrip HTD
Code: 548299
Product detailed description
Thanks to the optimized load distribution, the involute tooth profile of the HTD® belt guarantees high power transmission at low speeds with high torque. PowerGrip® HTD® 3M and 5M belts are suitable for domestic use, office machines, power tools and for use in the process and chemical industries.Alternative markings
- Strongbelt M / Optibelt Omega HTD / Contitech Synchrobelt HTD / Megadyne RPP / SKF HiTD / PIX X treme HTD / Goodyear Hi-Performance Pd / Bando Synchro-Link
Design
- The specially designed, involute tooth profile improves stress distribution and allows higher total loads to be used. pulleys.
- The durable elastomeric backing protects against environmental contamination and frictional wear as power is transmitted from the back of the belt.
- The teeth protect the tough nylon surface.
- Fiberglass tensile cords. . Benefits
- PowerGrip® HTD® 3M and 5M belts are designed for speeds up to 20,000 rpm and up to 10 kW. • The optimized tooth shape allows high load transmission even with small spacings.
- Due to small manufacturing tolerances, the distances between the fixed axes are predictable. The high degree of flexibility also allows the use of very small pulleys (outer diameter 8.79 mm).
- Perimeter speed up to 80 m/s.
- Efficiency up to 99%.
- Compact design.
- 25% better resistance to tooth skipping.
Additional parameters
| Category: | Belts > flat gear > 5M (5x3.8) > width 15 mm |
|---|---|
| Weight: | 0.026 kg |
| EAN: | 5414465357268 |
| Calculation length Lw, Lp, mm: | 405 |
| Cord type: | GL |
| Country of origin: | GB |
| Height H (mm): | 3,8 |
| Manufacturer's brand: | Gates |
| Material: | CR |
| Number of teeth (splines): | 81 |
| Product: | POWERGRIP HTD |

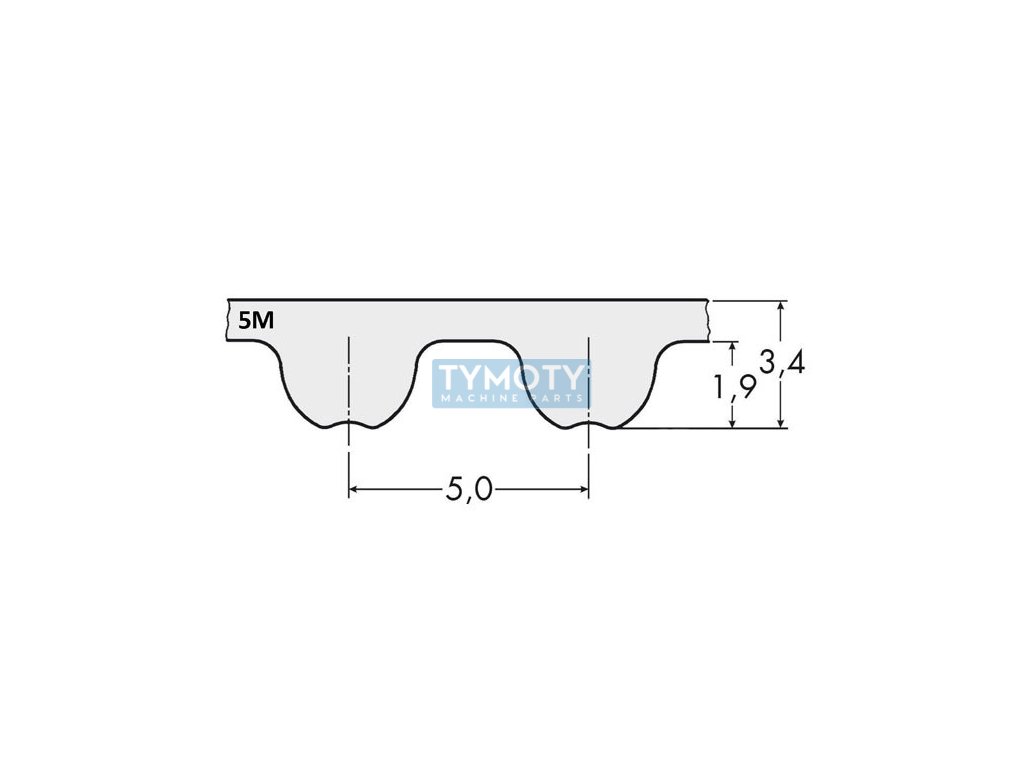

| Profile: | 5M |
| Spacing t (mm): | 5 |
| Width B (mm): | 15 |
| Číslo výrobce: | 9293-42783 |
| Značení: | HTD 405 5M 15 |
| Řada: | 405-RPP5-15 |
| Typ: | ozubený |
