Timing belt 384 3M 12 optibelt Omega
Code: 268734
Product detailed description

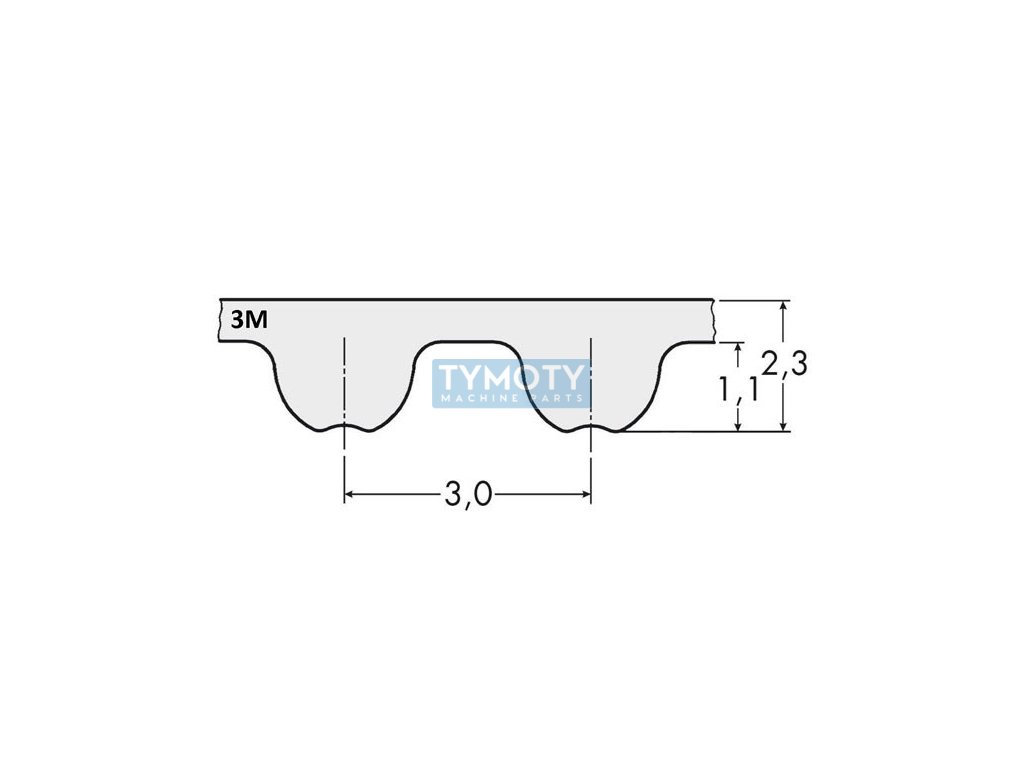

Timing belt 3M 384 - 12 mm is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 384 3M 12. The 3M profile defines a tooth pitch of 3 mm and a height of 2.3 mm. The timing belt is 384 mm long and has a width of 12 mm. The width can be adjusted as desired. The exact number of teeth is 128 pcs, which will help us determine the length. The trade name OMEGA. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > 3M (3x2.4) |
|---|---|
| Weight: | 0.47 kg |
| Calculation length Lw, Lp, mm: | 384 |
| Height H (mm): | 2,3 |
| Height H1 (mm): | 1,1 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 128 |
| Product: | OMEGA |
| Profile: | 3M |
| Spacing t (mm): | 3 |
| Width B (mm): | 12 |
| Číslo výrobce: | 1612110-12 |
| Značení: | 384 3M 12 |
| Řada: | 384-RPP3-12 |
| Typ: | ozubený řemen |
