Timing belt 325 5M 15 optibelt Omega
Code: 251741
Product detailed description

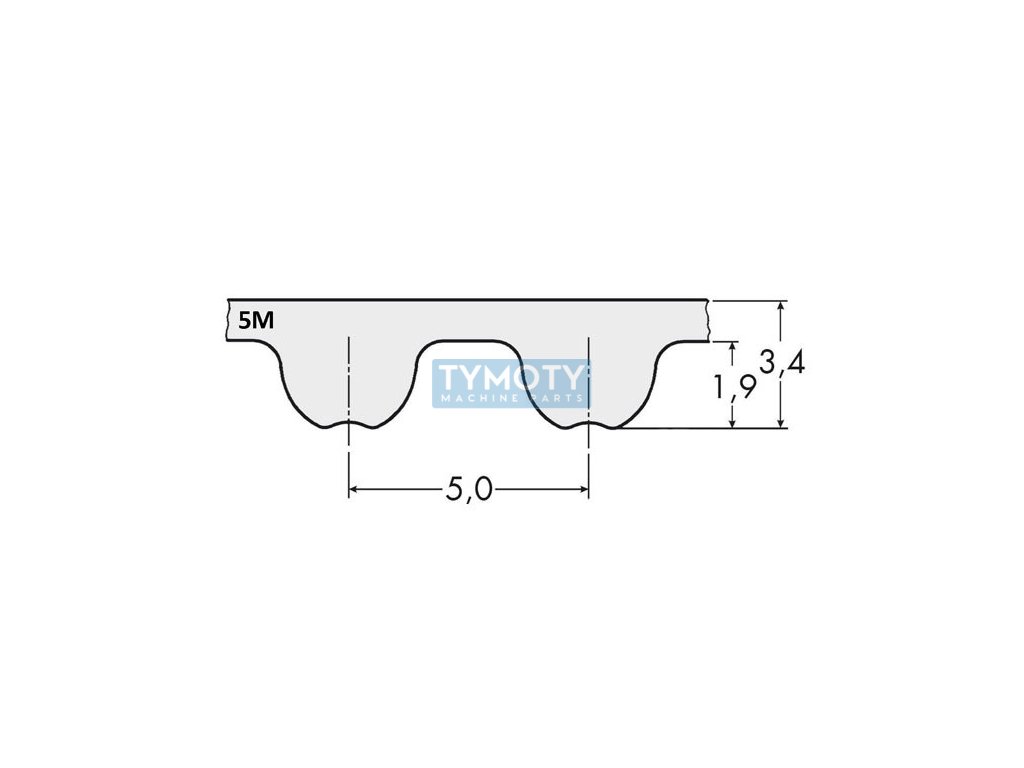

Timing belt 5M 325 - 15 mm is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 325 5M 15. The 5M profile defines a tooth pitch of 5 mm and a height of 3.4 mm. The timing belt is 325 mm long and has a width of 15 mm. The width can be adjusted as desired. The exact number of teeth is 65 pcs, which will help us determine the length. The trade name OMEGA. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > 5M (5x3.8) > width 15 mm |
|---|---|
| Weight: | 0.022 kg |
| EAN: | 4014486045604 |
| Calculation length Lw, Lp, mm: | 325 |
| Height H (mm): | 3,4 |
| Height H1 (mm): | 1,9 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 65 |
| Product: | OMEGA |
| Profile: | 5M |
| Spacing t (mm): | 5 |
| Width B (mm): | 15 |
| Číslo výrobce: | 1658271 |
| Značení: | 325 5M 15 |
| Řada: | 325-RPP5-15 |
| Typ: | ozubený řemen |
