Timing belt 3048 8M 50 optibelt Omega
Code: 252374
Product detailed description

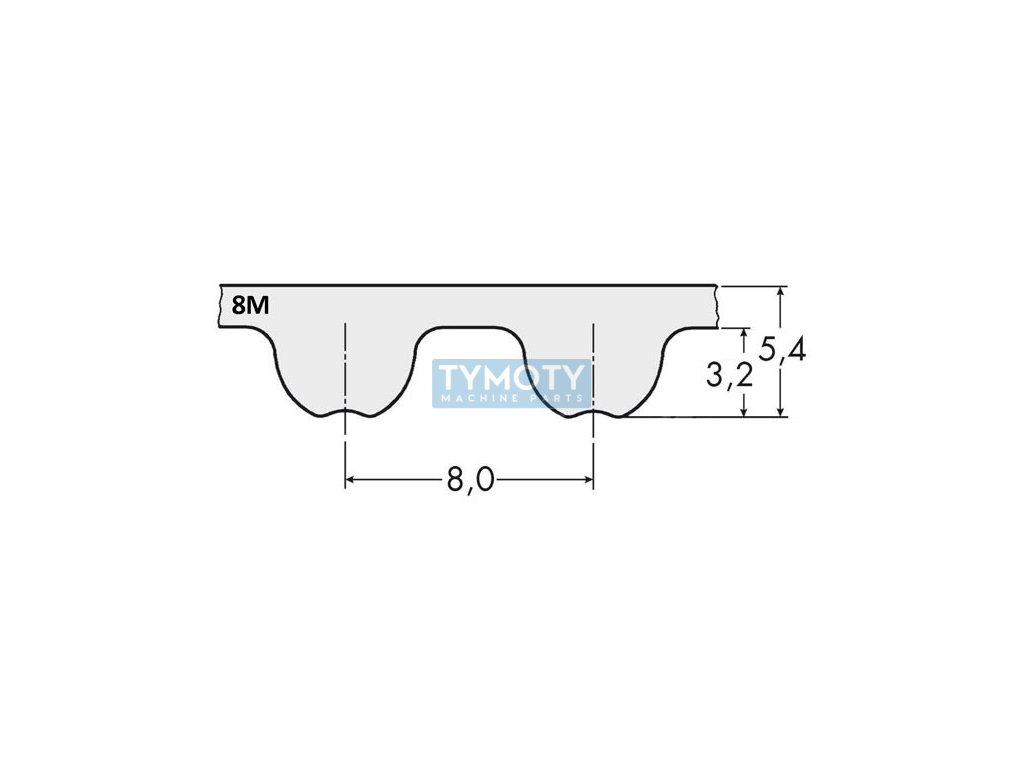

Timing belt 8M 3048 - 50 mm is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 3048 8M 50. The 8M profile defines a tooth pitch of 8 mm and a height of 5.4 mm. The timing belt is 3048 mm long and has a width of 50 mm. The width can be adjusted as desired. The exact number of teeth is 381 pcs, which will help us determine the length. The trade name OMEGA. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > 8M (8x6) > width 50 mm |
|---|---|
| Weight: | 0.8 kg |
| EAN: | 4014486421019 |
| Calculation length Lw, Lp, mm: | 3048 |
| Height H (mm): | 5,4 |
| Height H1 (mm): | 3,2 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 381 |
| Product: | OMEGA |
| Profile: | 8M |
| Spacing t (mm): | 8 |
| Width B (mm): | 50 |
| Číslo výrobce: | 1957021 |
| Značení: | 3048 8M 50 |
| Řada: | 3048-RPP8-50 |
| Typ: | ozubený řemen |
