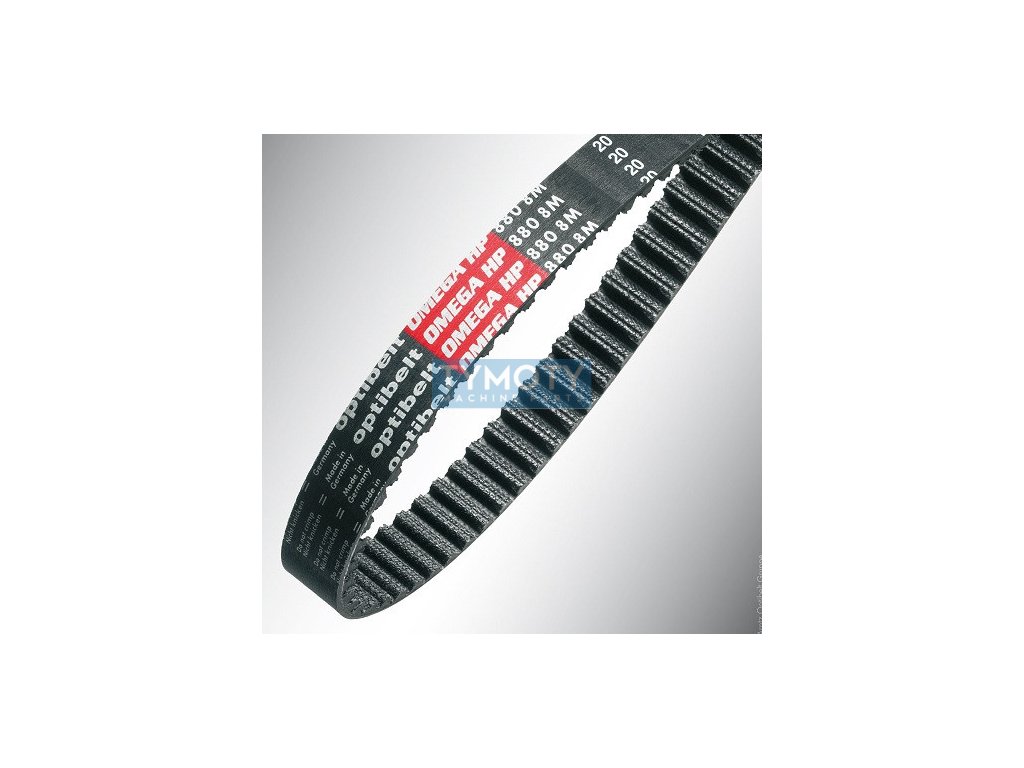

Timing belt 300 3M 15 optibelt Omega HP
Code: 252710
Product detailed description

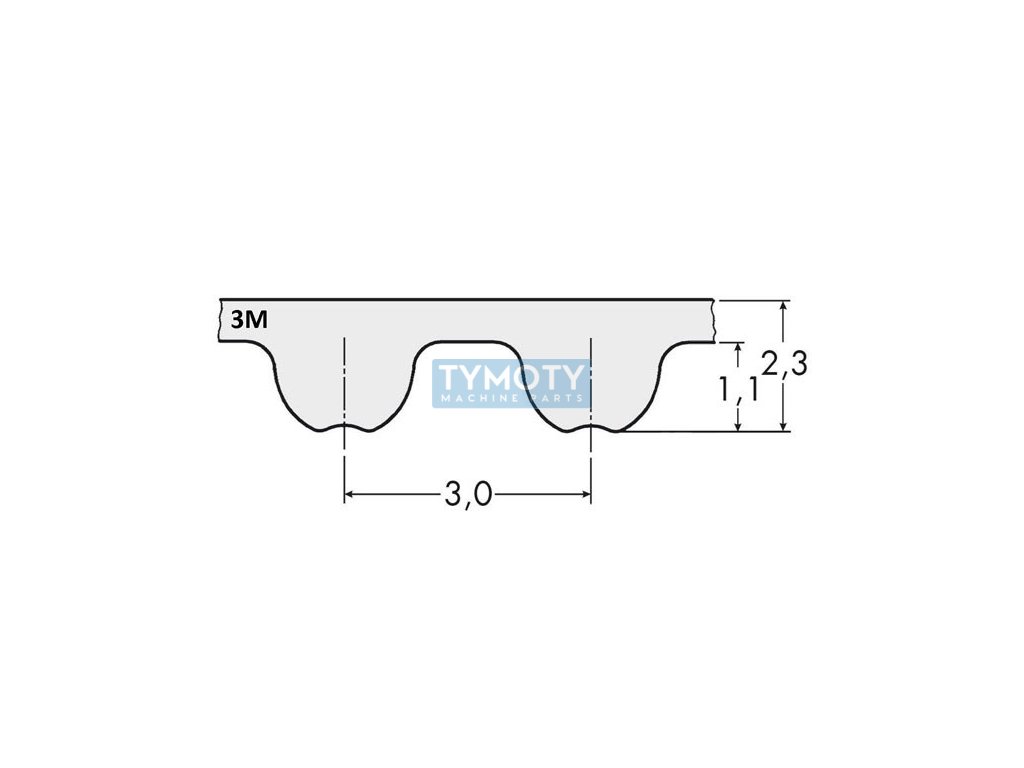

Timing belt 3MHP 300 - 15 mm is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 300 3MHP 15. The 3MHP profile defines a tooth pitch of 3 mm and a height of 2.3 mm. The timing belt is 300 mm long and has a width of 15 mm. The width can be adjusted as desired. The exact number of teeth is 100 pcs, which will help us determine the length. The trade name OMEGA HP. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > 3M (3x2.4) > width 15 mm |
|---|---|
| Weight: | 0.015 kg |
| EAN: | 4014486177299 |
| Calculation length Lw, Lp, mm: | 300 |
| Height H (mm): | 2,3 |
| Height H1 (mm): | 1,1 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 100 |
| Product: | OMEGA HP |
| Profile: | 3M |
| Spacing t (mm): | 3 |
| Width B (mm): | 15 |
| Číslo výrobce: | 1653813 |
| Značení: | 300 3MHP 15 |
| Řada: | 300 3MHP 15 |
| Typ: | Rozvodový řemen ozubený |
