Timing belt 285 DL 050 (12,70 mm) optibelt ZR
Code: 254410
Product detailed description

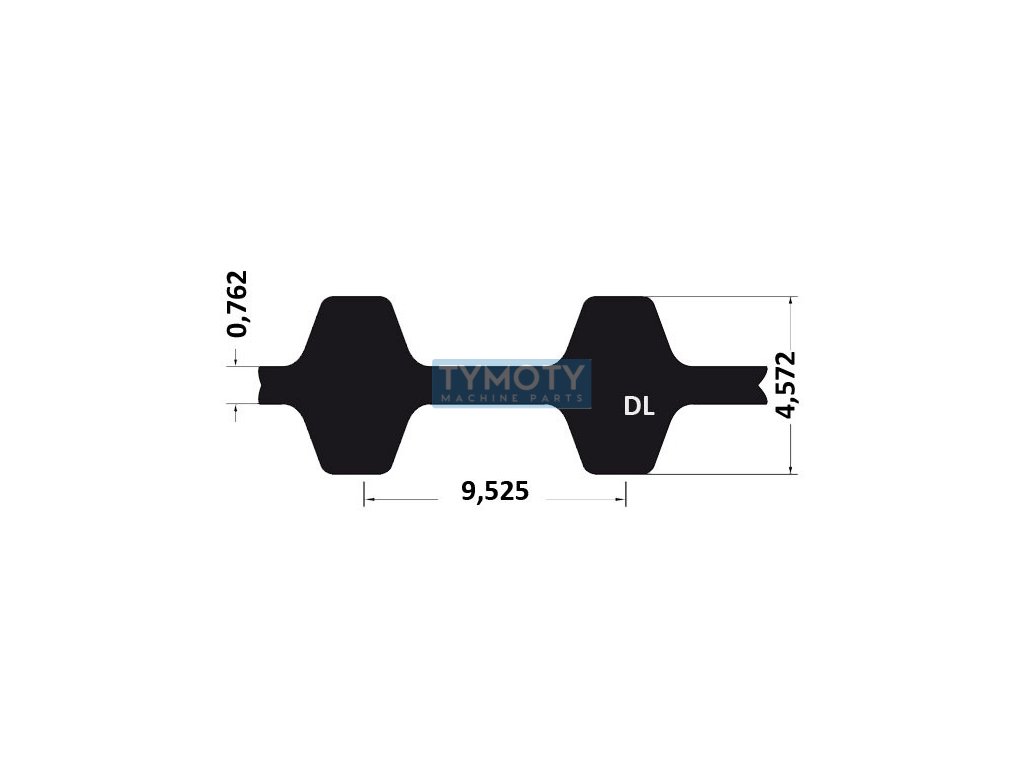

Timing belt DL 285 - 050 timing belt optibelt ZR is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 285 DL 050. The DL profile defines a tooth pitch of 9.525 mm and a height of 4.57 mm. The timing belt is 723.9 mm long and has a width of 12.7 mm. The width can be adjusted as desired. The exact number of teeth is 76 pcs, which will help us determine the length. The trade name ZR. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > DL (9.53x4.57) > width 050 (12.7 mm) |
|---|---|
| Weight: | 0.026 kg |
| EAN: | 4014486012033 |
| Calculation length Lw, Lp, mm: | 723,9 |
| Height H (mm): | 4,57 |
| Height H1 (mm): | 1,91 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 76 |
| Product: | ZR |
| Profile: | DL |
| Spacing t (mm): | 9,525 |
| Width B (mm): | 12,7 |
| Číslo výrobce: | 1850720 |
| Řada: | 285 DL 050 |
| Typ: | Rozvodový řemen oboustranný |
