Timing belt 255 L 050 (12,70 mm) optibelt ZR
Code: 253902
Product detailed description

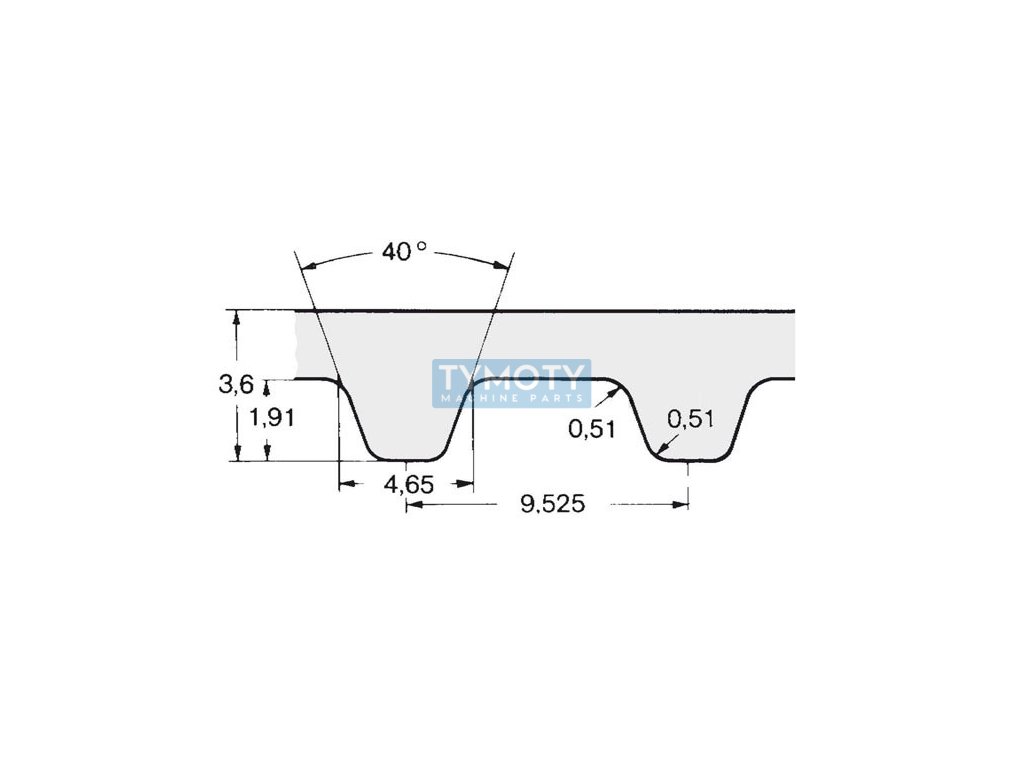

Timing belt L 255 - 050 timing belt optibelt ZR is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 255 L 050. The L profile defines a tooth pitch of 9.525 mm and a height of 3.6 mm. The timing belt is 647.7 mm long and has a width of 12.7 mm. The width can be adjusted as desired. The exact number of teeth is 68 pcs, which will help us determine the length. The trade name ZR. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > L (3.5x1.91) > width 050 (12.7 mm) |
|---|---|
| Weight: | 0.025 kg |
| EAN: | 4014486006728 |
| Calculation length Lw, Lp, mm: | 647,7 |
| Height H (mm): | 3,6 |
| Height H1 (mm): | 1,91 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 68 |
| Product: | ZR |
| Profile: | L |
| Spacing t (mm): | 9,525 |
| Width B (mm): | 12,7 |
| Číslo výrobce: | 1078149 |
| Řada: | 255 L 050 |
| Typ: | Rozvodový řemen ozubený |
