Timing belt 2400 D8M 20 optibelt Omega
Code: 252607
Product detailed description

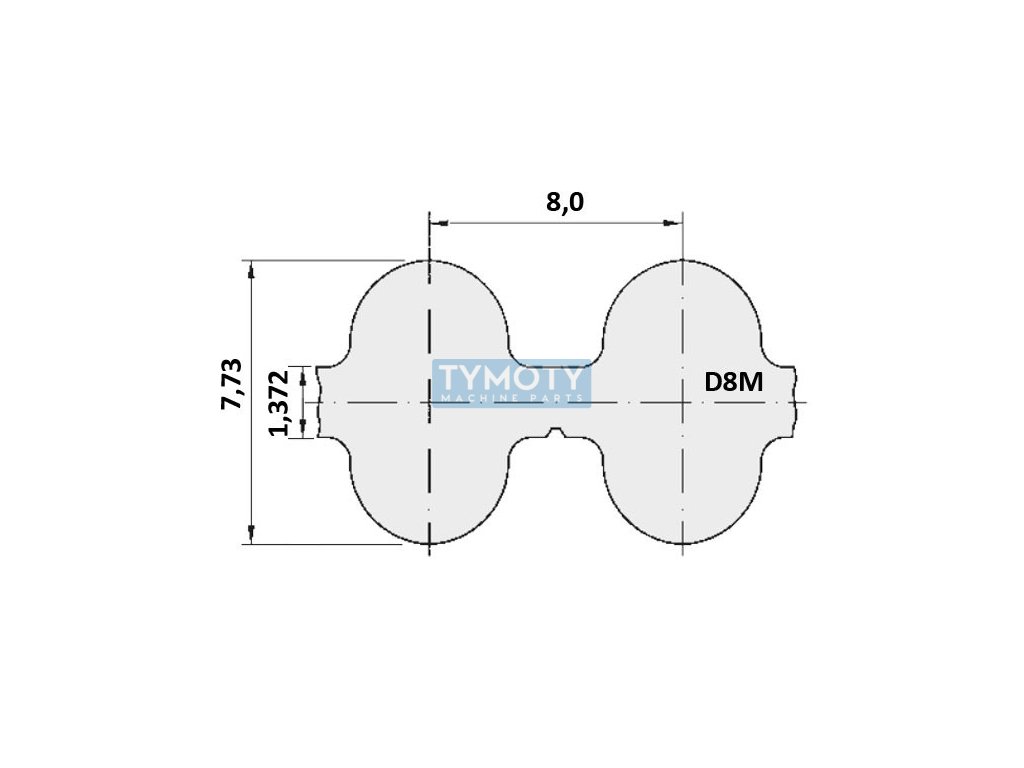

Timing belt D8M 2400 - 20 mm is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 2400 D8M 20. The D8M profile defines a tooth pitch of 8 mm and a height of 7.73 mm. The timing belt is 2400 mm long and has a width of 20 mm. The width can be adjusted as desired. The exact number of teeth is 300 pcs, which will help us determine the length. The trade name OMEGA. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > D8M (8x8.3) |
|---|---|
| Weight: | 0.04 kg |
| EAN: | 4014486429473 |
| Calculation length Lw, Lp, mm: | 2400 |
| Height H (mm): | 7,73 |
| Height H1 (mm): | 1,372 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 300 |
| Product: | OMEGA |
| Profile: | D8M |
| Spacing t (mm): | 8 |
| Width B (mm): | 20 |
| Číslo výrobce: | 1927036 |
| Značení: | 2400 D8M 20 |
| Řada: | 2400 D8M 20 |
| Typ: | ozubený řemen oboustranný |
