Timing belt 225 3M 6 optibelt Omega
Code: 249850
Product detailed description

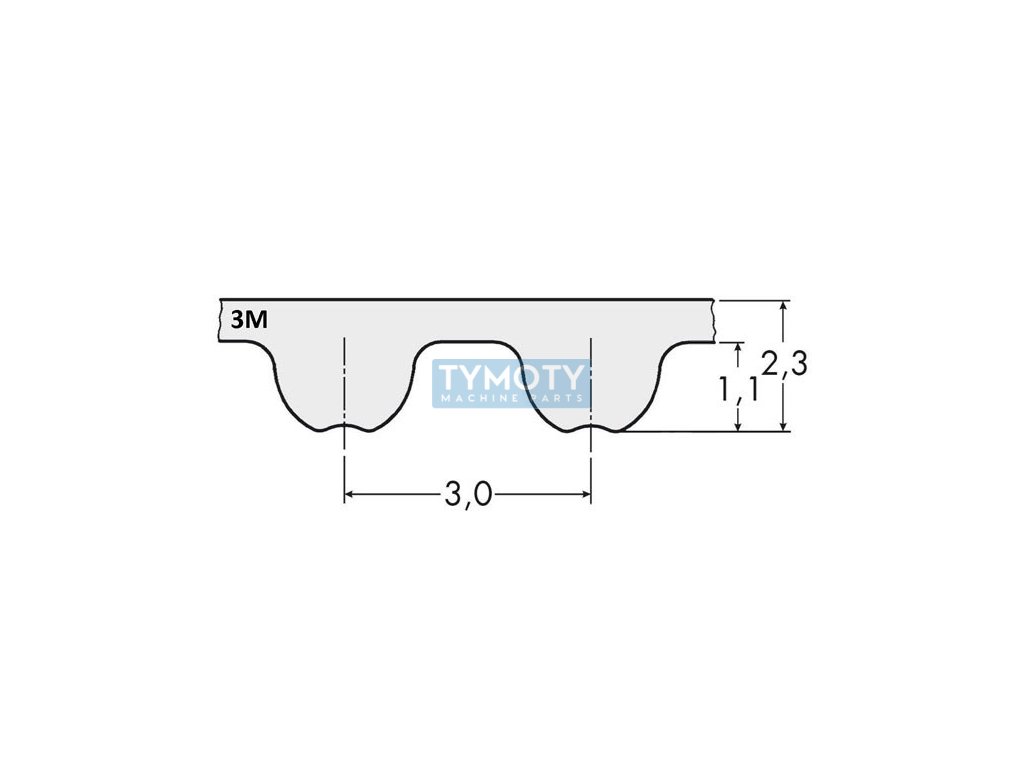

The 3M 225 - 6 mm timing belt is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 225 3M 6. The 3M profile defines a tooth pitch of 3 mm and a height of 2.3 mm. The timing belt is 225 mm long and has a width of 6 mm. The width can be adjusted as desired. The exact number of teeth is 75 pcs, which will help us determine the length. The trade name OMEGA. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > 3M (3x2.4) > width 6 mm |
|---|---|
| Weight: | 0.006 kg |
| EAN: | 4014486039986 |
| Calculation length Lw, Lp, mm: | 225 |
| Height H (mm): | 2,3 |
| Height H1 (mm): | 1,1 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 75 |
| Product: | OMEGA |
| Profile: | 3M |
| Spacing t (mm): | 3 |
| Width B (mm): | 6 |
| Číslo výrobce: | 1641876 |
| Značení: | 225 3M 6 |
| Řada: | 225-RPP3-6 |
| Typ: | ozubený řemen |
