Timing belt 1800 S8M 200 optibelt STD
Code: 253602
Product detailed description

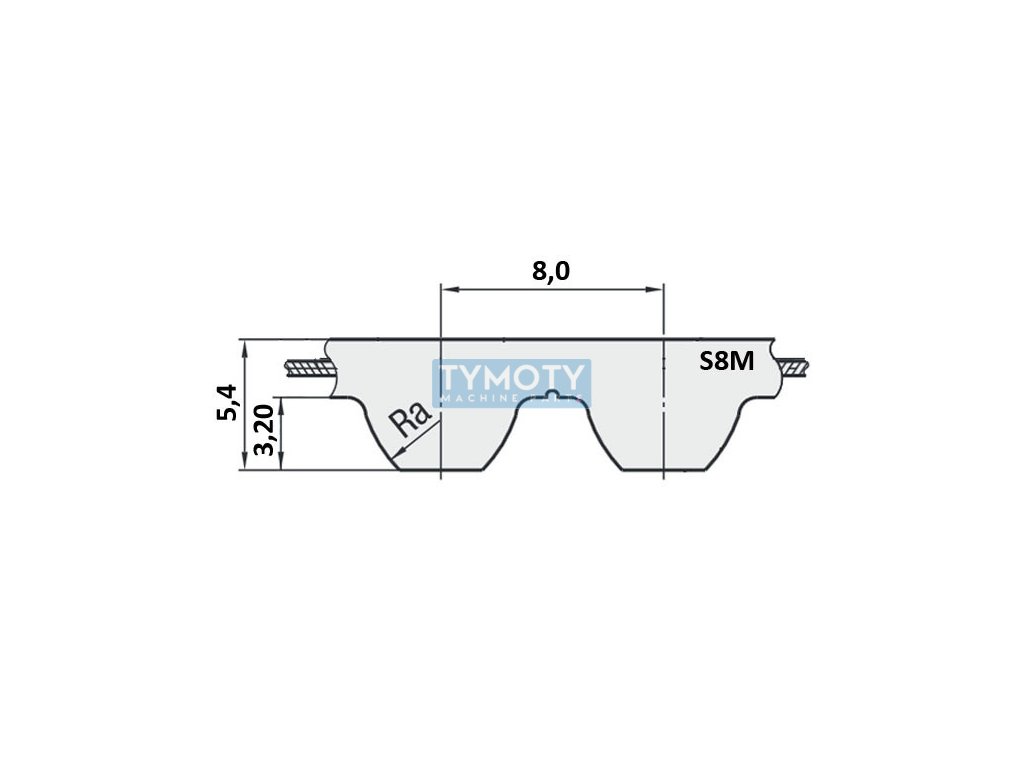

Timing belt S8M 1800 - 20 mm is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 200 S8M 1800. The S8M profile defines a tooth pitch of 8 mm and a height of 5.4 mm. The timing belt is 1800 mm long and has a width of 20 mm. The width can be adjusted as desired. The exact number of teeth is 225 pcs, which will help us determine the length. The trade name STD. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > S8M (8x5.1) > width 20 mm |
|---|---|
| Weight: | 0.18 kg |
| EAN: | 4014486209402 |
| Calculation length Lw, Lp, mm: | 1800 |
| Height H (mm): | 5,4 |
| Height H1 (mm): | 3,2 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 225 |
| Product: | STD |
| Profile: | S8M |
| Spacing t (mm): | 8 |
| Width B (mm): | 200 |
| Číslo výrobce: | 1936523 |
| Řada: | 200 S8M 1800 |
| Typ: | Rozvodový řemen ozubený |
