Timing belt 169 L 100 (25,40 mm) optibelt ZR
Code: 253877
Product detailed description

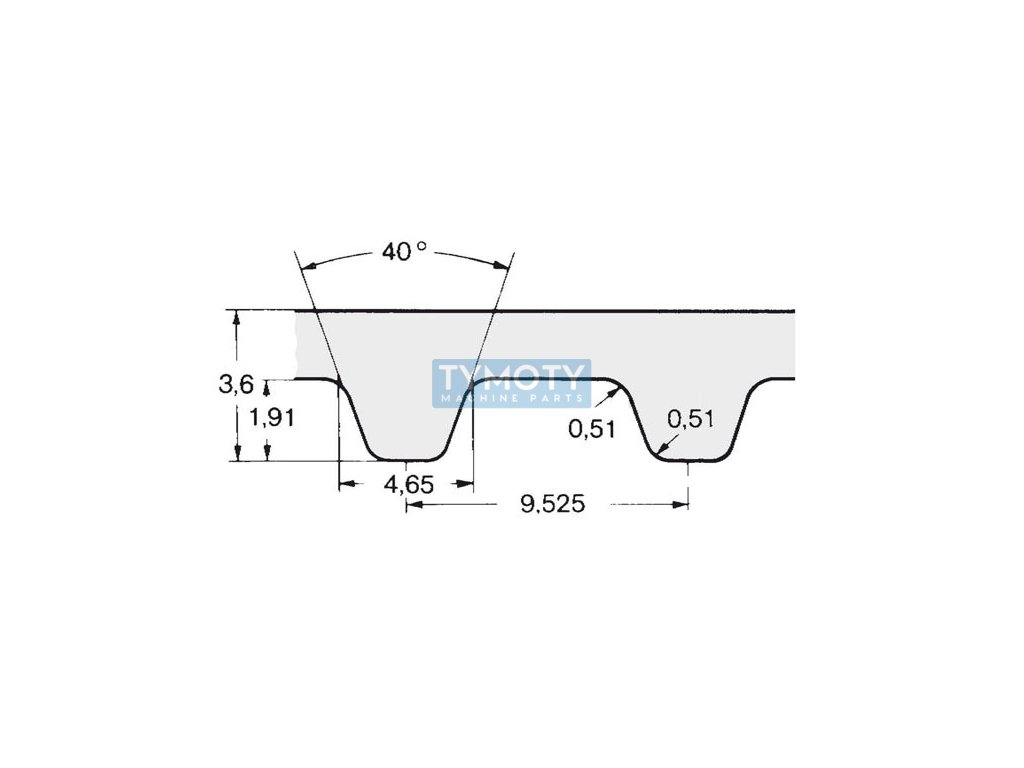

Timing belt L 169 - 100 timing belt optibelt ZR is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 169 L 100. The L profile defines a tooth pitch of 9.525 mm and a height of 3.6 mm. The timing belt is 428.63 mm long and has a width of 25.4 mm. The width can be adjusted as desired. The exact number of teeth is 45 pcs, which will help us determine the length. The trade name ZR. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > L (3.5x1.91) > width 100 (25.4 mm) |
|---|---|
| Weight: | 0.051 kg |
| EAN: | 4014486006155 |
| Calculation length Lw, Lp, mm: | 428,63 |
| Height H (mm): | 3,6 |
| Height H1 (mm): | 1,91 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 45 |
| Product: | ZR |
| Profile: | L |
| Spacing t (mm): | 9,525 |
| Width B (mm): | 25,4 |
| Číslo výrobce: | 1889733 |
| Řada: | 169 L 100 |
| Typ: | Rozvodový řemen ozubený |
