Timing belt 1400 14M 85 optibelt Omega HP
Code: 253133
Product detailed description

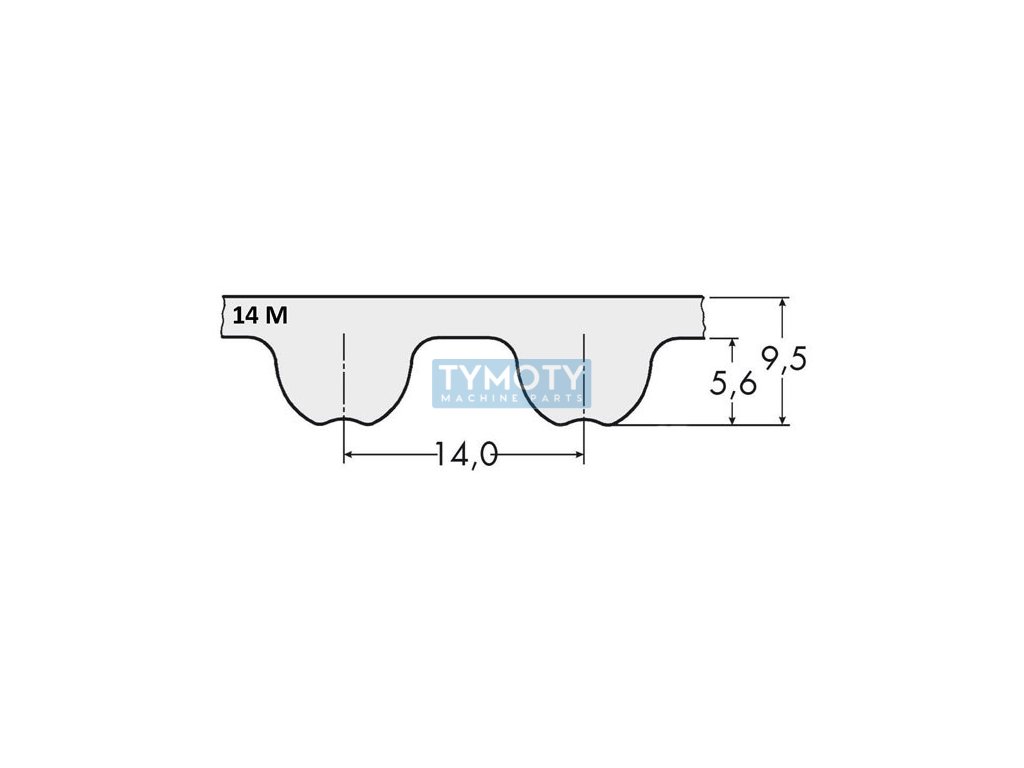

Timing belt 14MHP 1400 - 85 mm is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 1400 14MHP 85. The 14MHP profile defines a tooth pitch of 14 mm and a height of 9.5 mm. The timing belt is 1400 mm long and has a width of 85 mm. The width can be adjusted as desired. The exact number of teeth is 100 pcs, which will help us determine the length. The trade name OMEGA HP. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > 14M (14x10) > width 85 mm |
|---|---|
| Weight: | 1.19 kg |
| EAN: | 4014486191479 |
| Calculation length Lw, Lp, mm: | 1400 |
| Height H (mm): | 9,5 |
| Height H1 (mm): | 5,6 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 100 |
| Product: | OMEGA HP |
| Profile: | 14M |
| Spacing t (mm): | 14 |
| Width B (mm): | 85 |
| Číslo výrobce: | 1006228 |
| Značení: | 1400 14MHP 85 |
| Řada: | 1400-SLV2-14M-85 |
| Typ: | Rozvodový řemen ozubený |
