Timing belt 1256 S8M 300 optibelt STD
Code: 253551
Product detailed description

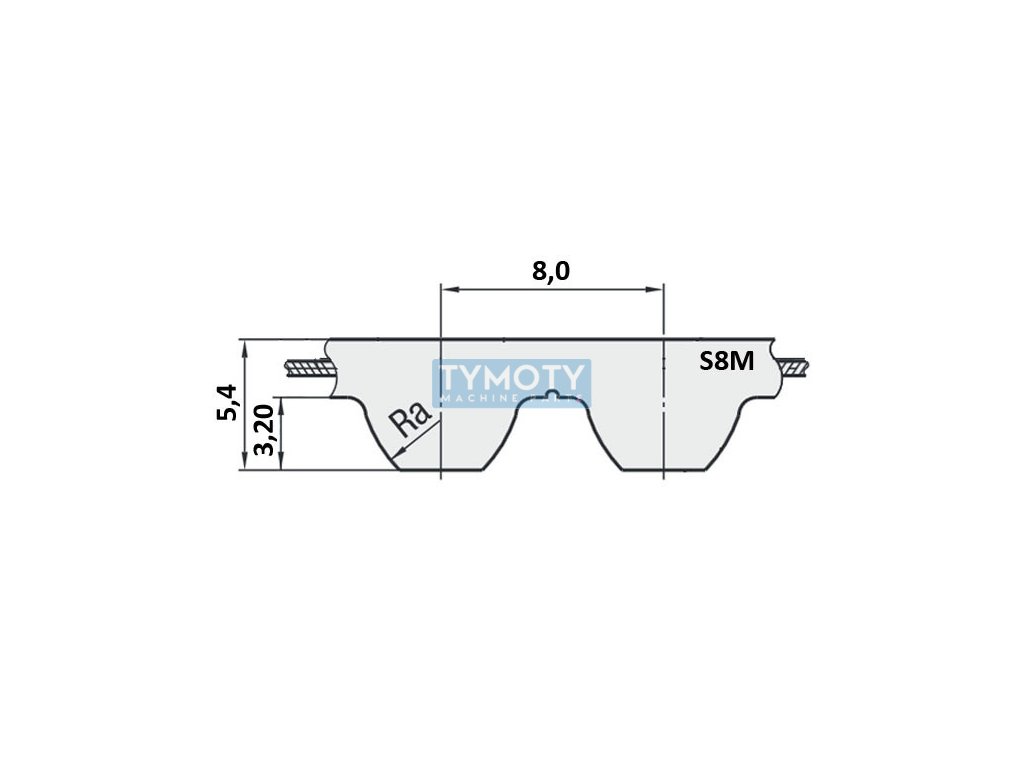

Timing belt S8M 1256 - 30 mm is a high-performance chloroprene belt. The manufacturer's type designation optibelt is 300 S8M 1256. The S8M profile defines a tooth pitch of 8 mm and a height of 5.4 mm. The timing belt is 1256 mm long and has a width of 30 mm. The width can be adjusted as desired. The exact number of teeth is 157 pcs, which will help us determine the length. The trade name STD. is a supplier of special belts of the highest quality for all types of operation. Thousands of pieces in stock and fast shipping guarantee your satisfaction.Additional parameters
| Category: | Belts > flat gear > S8M (8x5.1) > width 30 mm |
|---|---|
| Weight: | 0.21 kg |
| EAN: | 4014486208818 |
| Calculation length Lw, Lp, mm: | 1256 |
| Height H (mm): | 5,4 |
| Height H1 (mm): | 3,2 |
| Manufacturer's brand: | Optibelt |
| Number of teeth (splines): | 157 |
| Product: | STD |
| Profile: | S8M |
| Spacing t (mm): | 8 |
| Width B (mm): | 300 |
| Číslo výrobce: | 1977936 |
| Řada: | 300 S8M 1256 |
| Typ: | Rozvodový řemen ozubený |
