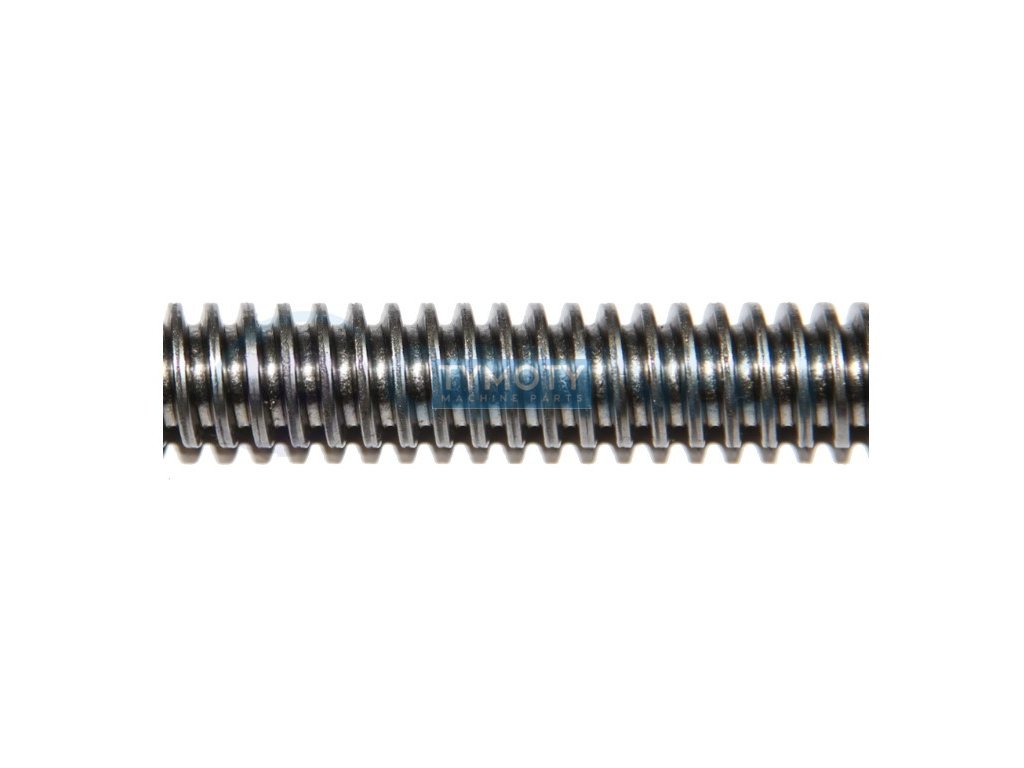

Threaded rod trapezoidal left thread DIN 103 Tr20x4x1000 C15

Product detailed description

The threaded rod with left-hand trapezoidal thread is made of C15 steel and has no surface treatment. This rod complies with DIN 103, which specifies dimensions and tolerances for trapezoidal threads. The trapezoidal thread is characterized by its isosceles trapezoidal profile, which ensures high wear resistance and the ability to carry large axial loads.

The thread diameter is Tr20x4, which means that the outer diameter of the thread is 20 mm and the thread pitch is 4 mm. This configuration is suitable for applications where it is necessary to ensure a reliable and strong connection with the ability to transmit significant forces. The rod length is 1000 mm, which provides sufficient scope for various structural applications.

The C15 material is a low-carbon steel that offers good machinability and sufficient strength for common mechanical applications. The lack of surface treatment means that the rod may be more susceptible to corrosion and is therefore suitable for use in environments where it is not exposed to aggressive chemicals or moisture.

This threaded rod is ideal for use in mechanical systems where a precise and tight connection is required, such as lifting devices, presses or other mechanisms where linear motion needs to be transferred to rotary motion or vice versa. The left-hand thread is used in cases where it is necessary to prevent the connection from loosening spontaneously when rotating in a clockwise direction.
