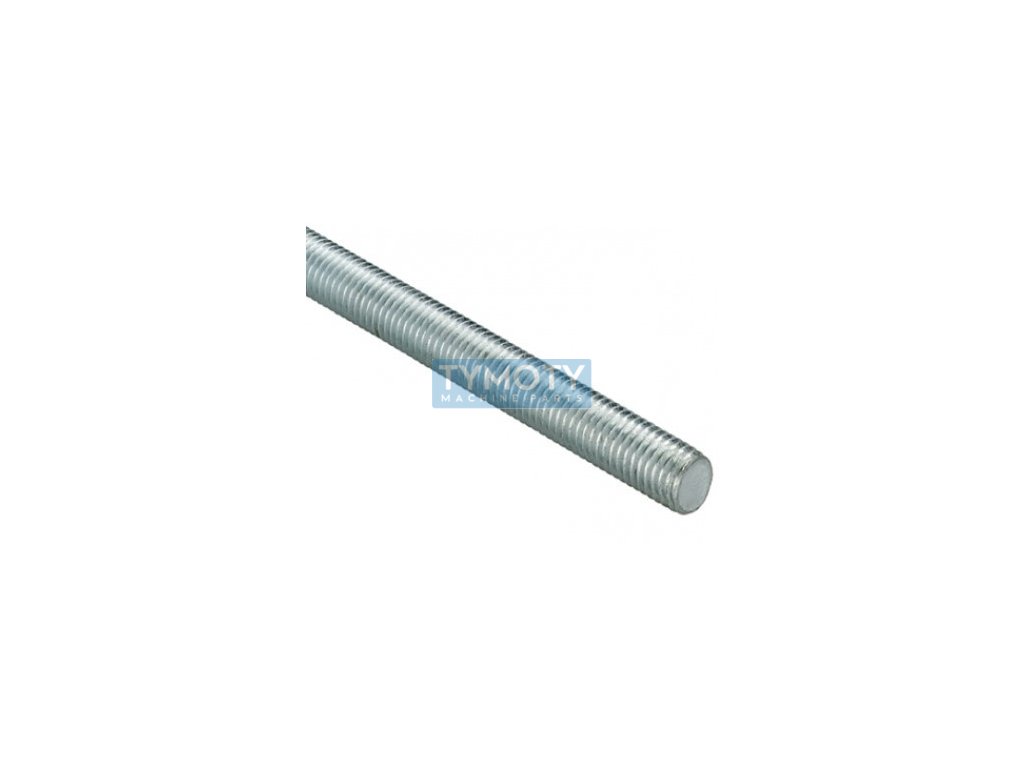

Threaded rod DIN 976 M3x1000-4.8 galvanized

Product detailed description

Threaded rod according to DIN 976, with dimensions M3x1000 mm, is made of steel with strength class 4.8. This rod is characterized by a metric thread with a nominal diameter of 3 mm and a thread pitch of 0.50 mm. The length of the rod is 1000 mm, which allows it to be used in various applications where the exact length and strength of the connecting element are required.

The material used to produce this threaded rod is steel, which is subsequently surface-treated with white zinc plating. This surface treatment provides increased corrosion resistance, which is important when used in environments with higher humidity or outdoors.

Strength class 4.8 means that the material has a minimum yield strength of 320 MPa and a minimum tensile strength of 400 MPa. This strength class is suitable for applications where extreme demands on mechanical resistance are not made, but reliability and consistency of material properties are required.

The threaded rod is a universal component in mechanical engineering, construction and assembly applications, where it serves as a connecting element or anchoring element. It is suitable for use in combination with nuts and washers of the same metric size, thus ensuring a strong and stable connection.
