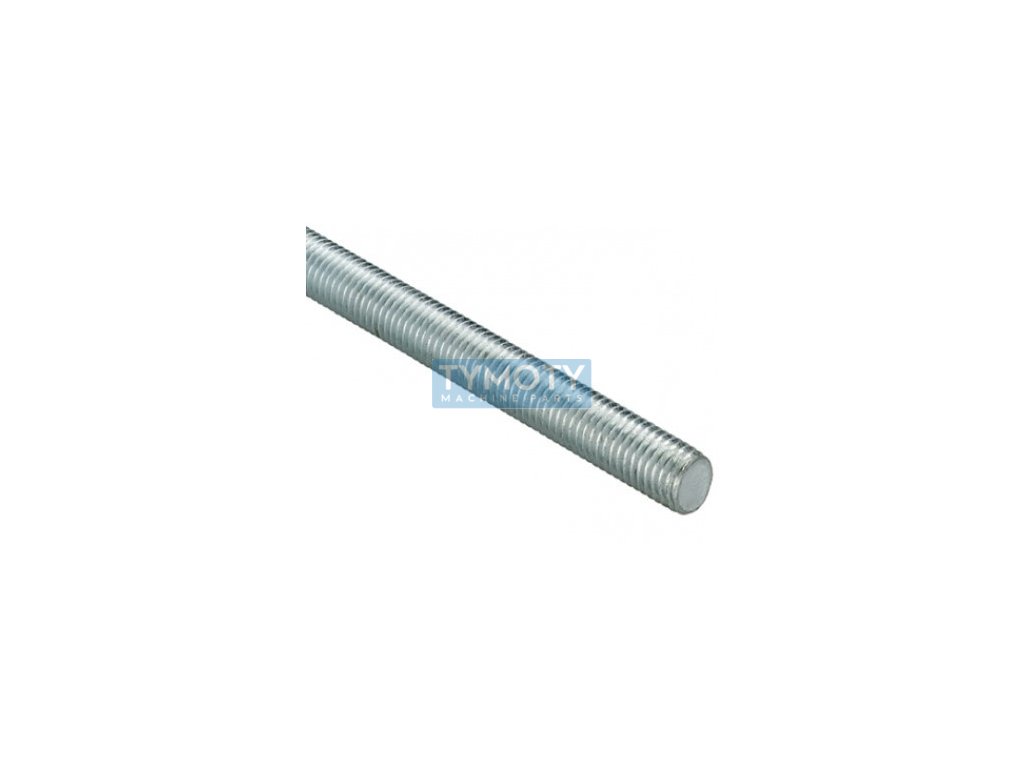

Threaded rod DIN 976 M30x1000-4.8 galvanized

Product detailed description

The threaded rod with the designation DIN 976 M30x1000-4.8 is made of galvanized steel, which ensures increased corrosion resistance. This rod has a metric thread with a diameter of M30 and a length of 1000 mm, with a thread pitch of 3.50 mm. The DIN 976 standard, which replaced the previous DIN 975 standard, defines the standards for threaded rods, and this particular rod belongs to strength class 4.8. This means that it has a minimum yield strength of 320 MPa and a minimum tensile strength of 400 MPa, which makes it suitable for use in applications where medium mechanical properties are required.

The zinc surface treatment, specifically white zinc plating, provides additional corrosion protection and increases the service life of the component in environments with high humidity or in outdoor conditions. The threaded rod is suitable for use in construction, mechanical engineering and in the assembly of various structures, where a reliable and strong connecting component is needed. Its versatility allows it to be used as an anchor rod, a connecting element or in combination with nuts and washers to create a strong and stable connection.
