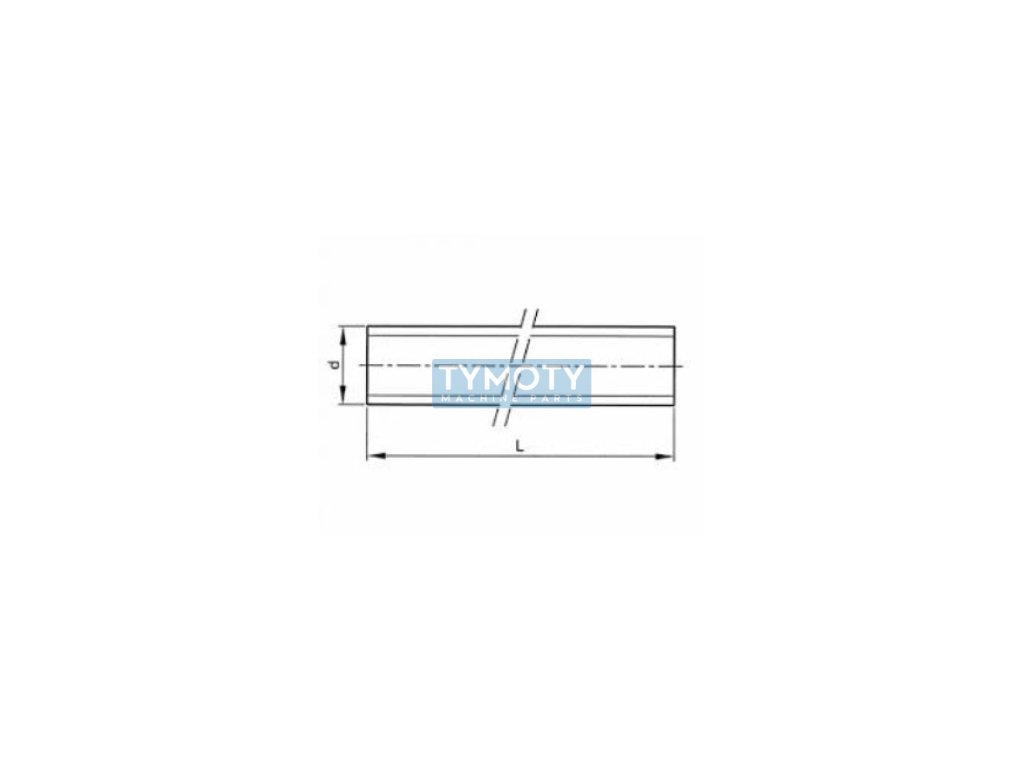

Threaded rod DIN 976 M22x1000-8.8 galvanized

Product detailed description

The threaded rod with the designation DIN 976 M22x1000-8.8 is made of galvanized steel and complies with the DIN 976 standard, which replaced the previous DIN 975 standard. This rod has a metric thread with a diameter of M22 and a length of 1000 mm. The thread pitch is 2.50 mm, which is standard for this type of thread.

The material used for production is steel with a strength class of 8.8, which means that it has a minimum yield strength of 640 MPa and a minimum tensile strength of 800 MPa. This strength class is suitable for applications where high mechanical resistance and reliability of joints are required.

The surface treatment is white zinc plating, which provides additional protection against corrosion and increases the rod's resistance to external influences. Zinc plating is a common surface treatment method that extends the life of steel components in environments with higher humidity or chemical aggressiveness.

This threaded rod is intended for use in various industries such as construction, engineering and manufacturing, where it is used to connect structural elements, fasten components or as part of anchoring systems. It is compatible with metric nuts and washers of the corresponding size and strength class.
