Threaded rod DIN 976 M22x1000-4.8 galvanized

Product detailed description

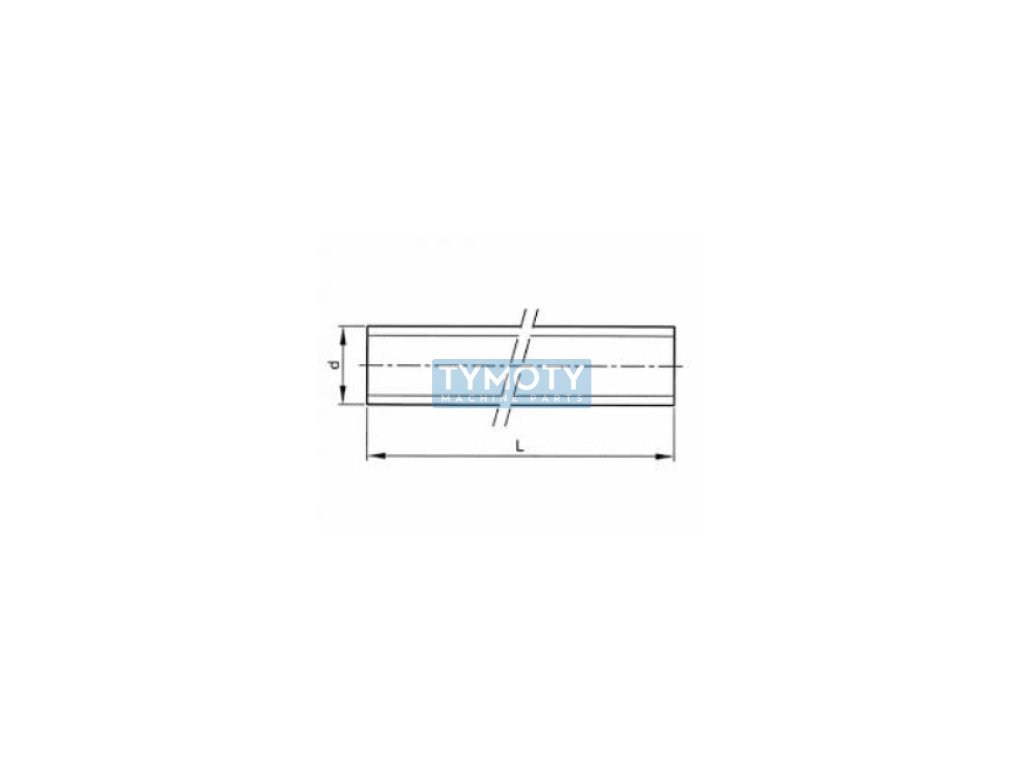

The threaded rod according to DIN 976 with the designation M22x1000-4.8 is made of steel and has a white zinc surface finish. This rod is characterized by a metric thread with a diameter of M22 and a length of 1000 mm. The thread pitch is 2.50 mm, which is standard for this type of thread and allows for a reliable connection with compatible nuts and other threaded components.

Strength class 4.8 indicates that the material has a yield strength of 320 MPa and a tensile strength of 400 MPa. This type of threaded rod is suitable for applications where extreme demands on strength are not made, but reliability and corrosion resistance, which is provided by the zinc surface finish, are required.

Threaded rods of this type are often used in construction, mechanical engineering and in the assembly of various structures, where they serve as a connecting element. Their versatility and affordability make them ideal for both temporary and permanent installations. The zinc-plated finish provides additional corrosion protection, extending the component's lifespan even in harsh conditions.
