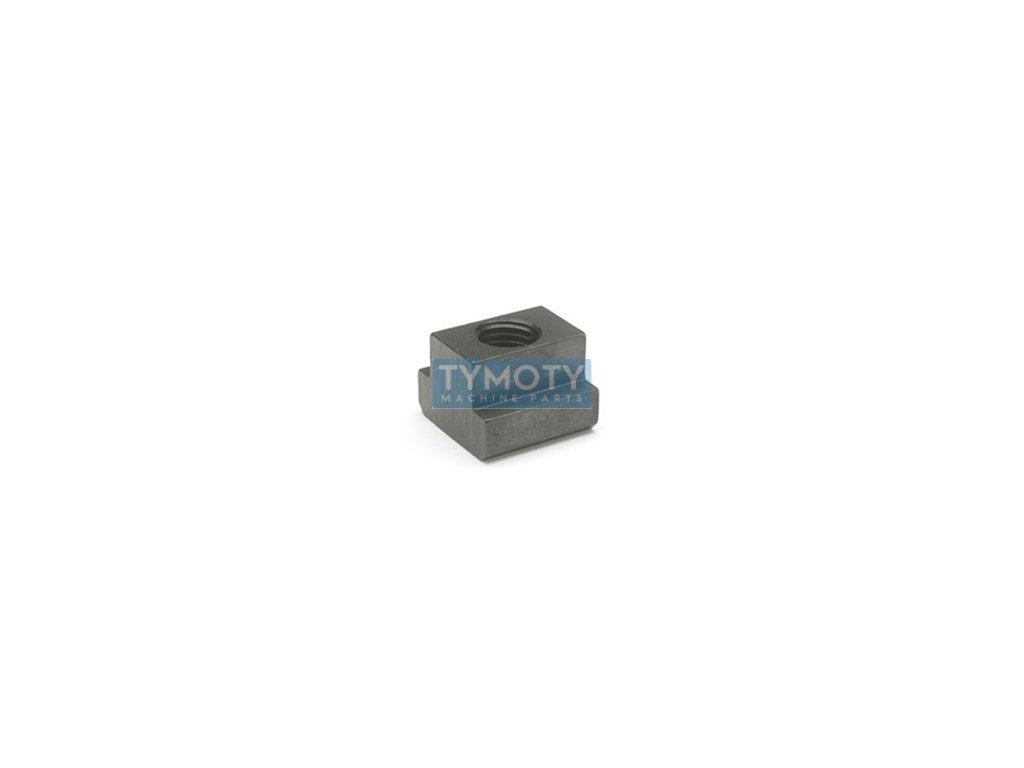

T-slot nut DIN 508 |10| M14x18

Product detailed description

The T-slot nut according to DIN 508 is designed for applications requiring quick and firm clamping in clamping systems. This component is made of steel, which guarantees high strength and resistance to mechanical stress. The nut has a metric thread M14 with a pitch of 2.00 mm, which is a standard size for this type of application, and is compatible with the corresponding screws and threaded rods.

The dimensions of the nut are precisely specified: width a is 18 mm, width e is 28 mm, height h is 20 mm and height k is 10 mm. These dimensions are optimized for use in T-slots, which allows for a safe and stable clamping in various structures and machines. The ISO 299 standard, which is equivalent to DIN 508, ensures international compatibility and standardization.

The nut is classified in strength class 10, which means it has high tensile strength and is suitable for demanding industrial applications. The absence of a surface treatment means that the nut may be more susceptible to corrosion in aggressive environments, so it is advisable to consider using it in combination with protective agents or in an environment where it is not exposed to corrosive influences.

This nut is ideal for use in mechanical engineering, production technology and other areas where a reliable and strong connection of components in T-slots is required.
