Slotted screw Phillips DIN 7985 M6x40 galvanized

Product detailed description

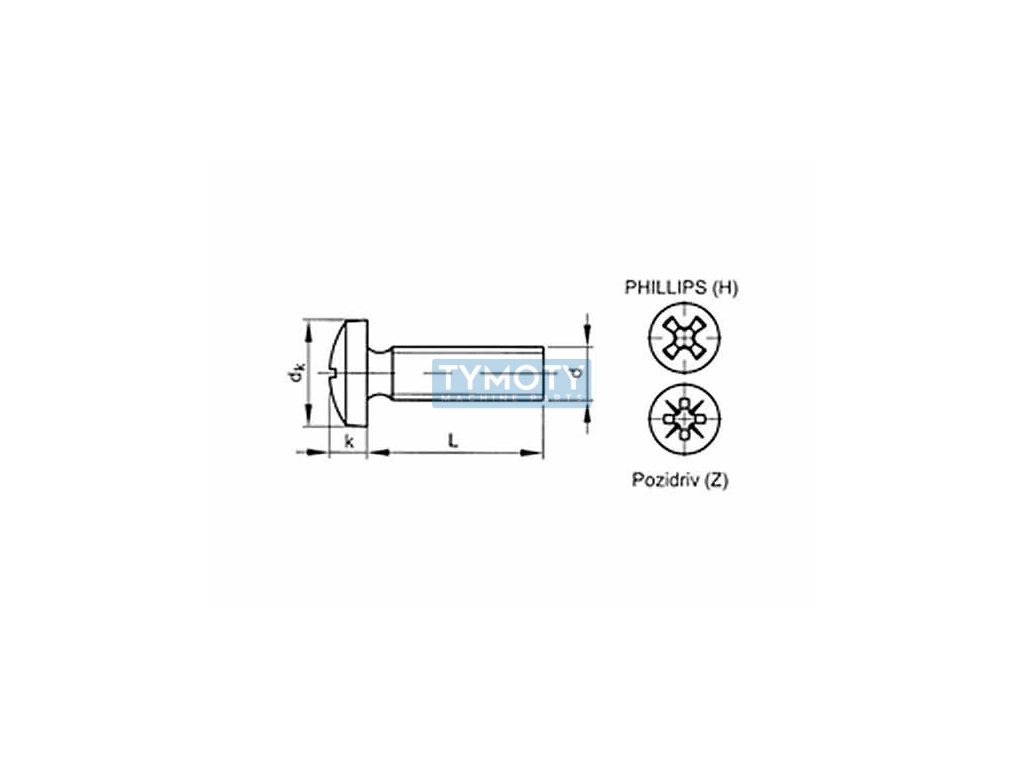

The Phillips cross recessed cylindrical round head screw is manufactured according to the standards ČSN 02 1147, ISO 7045 and DIN 7985H. This screw has a metric thread with a diameter of M6 and a length of 40 mm. The thread is metric with a normal pitch of 1.00 mm, which is standard for this type of screw and allows for a reliable connection in various applications.

The screw head is cylindrical with a diameter of 12 mm and a height of 4.75 mm, which provides sufficient surface area for the application of a cross-head screwdriver. The Phillips cross recess, specifically the size H3, allows for effective torque transmission, reducing the risk of damage to the groove during assembly or disassembly.

The screw material is steel with a strength class of 4.8, which means that it has a yield strength of 320 MPa and a tensile strength of 400 MPa. This strength class is suitable for applications where high mechanical loads are not required. The screw is surface-treated with white zinc, which provides basic corrosion protection and improves its aesthetic properties.

This screw is suitable for use in various industrial sectors where reliable and simple connection of components is required. It is ideal for applications where frequent disassembly and assembly are required, thanks to its easy handling with a Phillips cross recess.
