Sleeve N25 PU95 35x55x12 Dichtomatik

Product detailed description

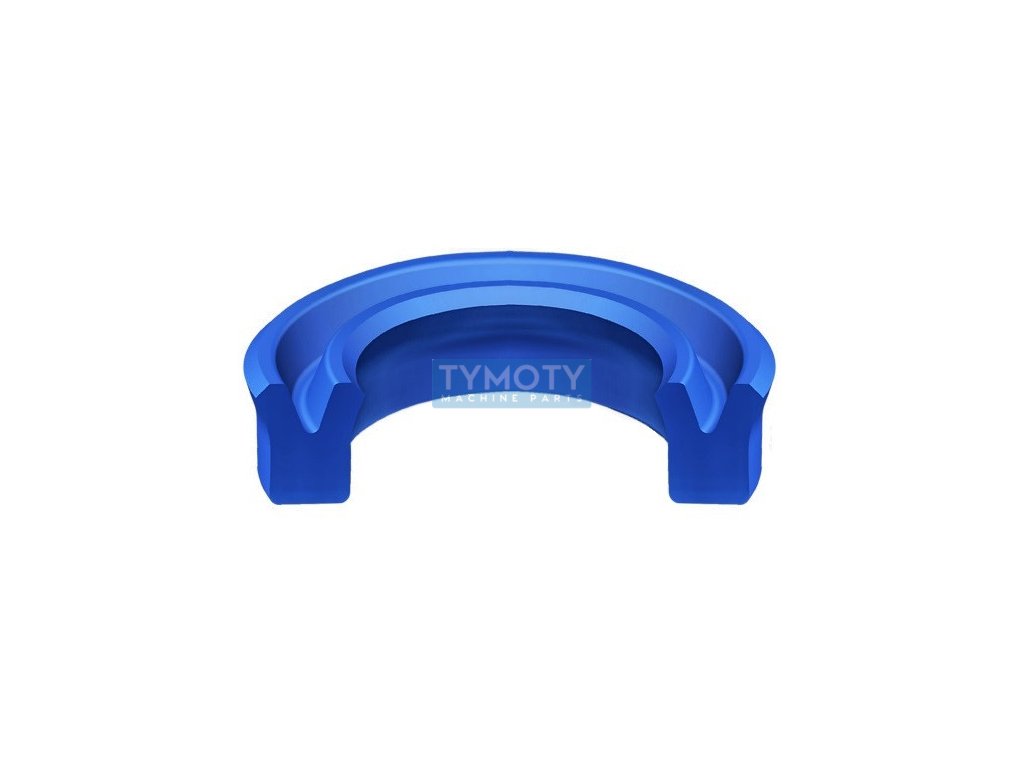

The N25 PU95 35x55x12 sleeve from Dichtomatik is specially designed for use in hydraulic systems, where it serves as a one-sided seal for the piston rod. This component is made of polyurethane with a hardness of 95 Shore A, which guarantees high resistance to wear and extrusion, thus extending the life of the seal even under difficult operating conditions.

The sleeve dimensions are 35 mm inner diameter, 55 mm outer diameter and 12 mm thickness, which allows it to be used in standard grooves according to ISO standards. The sleeve is able to seal effectively in dynamic applications at pressures up to 30 MPa, which makes it suitable for a wide range of hydraulic equipment, including those operating in difficult conditions with high loads.

Due to its design and material properties, the N25 PU95 sleeve is ideal for applications where high resistance to mechanical stress and chemical influences is required. Its versatility and reliability make it suitable for use in various industrial sectors where it is necessary to ensure effective and durable sealing of hydraulic components.
