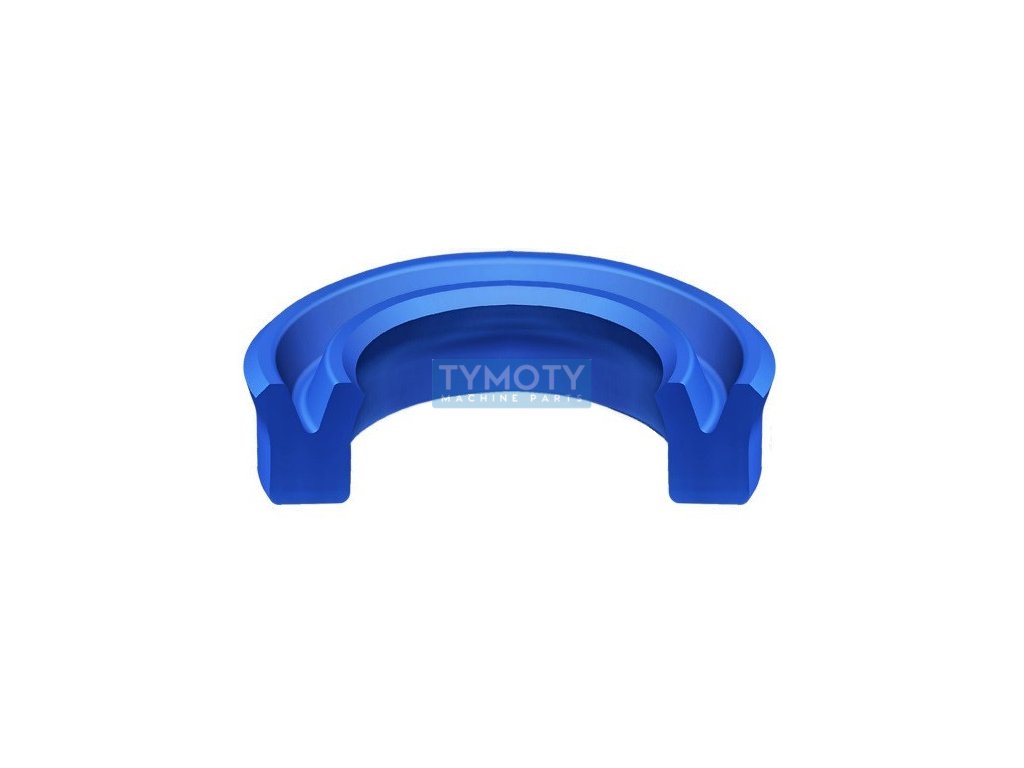

Sleeve N25 PU95 30x38x6 Dichtomatik

Product detailed description

The N25 PU95 30x38x6 sleeve from Dichtomatik is a single-sided hydraulic seal specially designed for applications with piston rods. It is made of polyurethane with a hardness of 95 Shore A, which ensures high resistance to wear and extrusion. This sleeve is suitable for dynamic applications where pressure up to 30 MPa must be handled, making it ideal for use in hydraulic systems with high demands on sealing ability.

The dimensions of the sleeve are 30 mm inner diameter, 38 mm outer diameter and 6 mm height. These dimensions allow its universal use in standard grooves for seals, which simplifies its integration into existing systems. PU95 material is known for its excellent resistance to mechanical wear, which extends the life of the seal even under intensive use.

The sleeve is designed to provide a reliable seal even at high piston rod speeds, minimizing the risk of fluid leakage and increasing the efficiency of the hydraulic system. Thanks to its properties, it is suitable for a wide range of industrial applications where it is necessary to ensure a reliable and durable seal.
