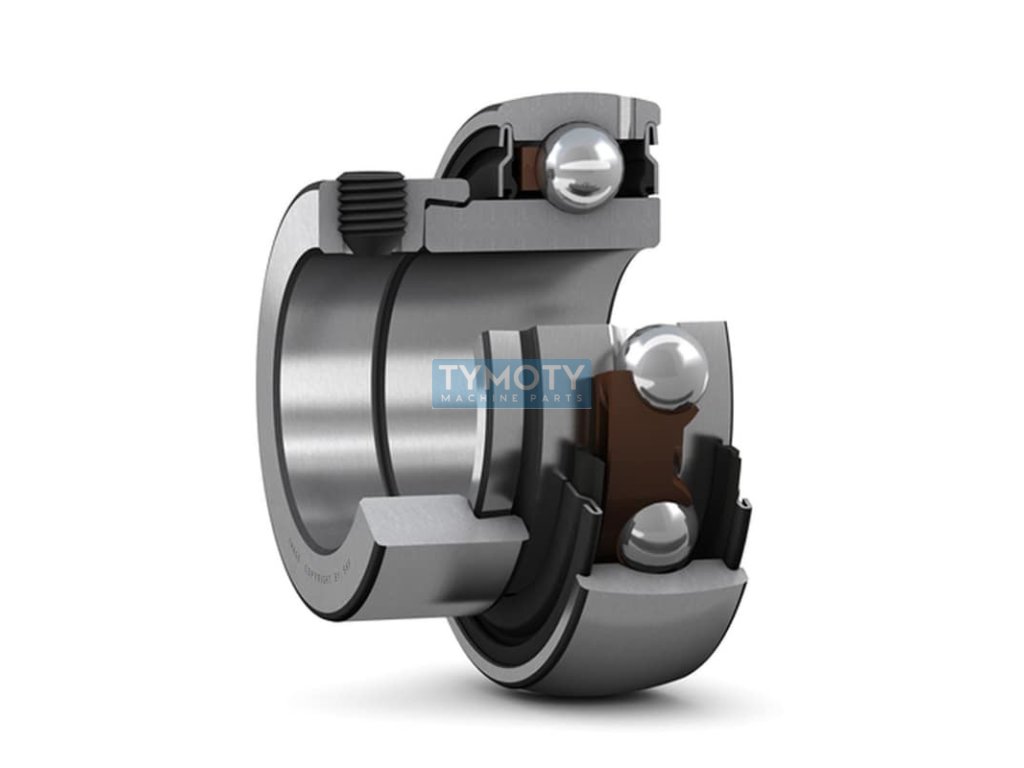

SKF YET 205-014 clamping bearing

Product detailed description

SKF YET 205-014 is a clamping bearing that belongs to the category of insert bearings, designed for applications requiring reliable and precise operation. This bearing has an inner diameter of 22.23 mm, an outer diameter of 52 mm and a width of 31 mm. It is made of high-quality steel, which is standardly used for rolling bearings, which guarantees its long service life and resistance to wear.

The bearing is equipped with a double-sided rubber contact seal, which provides protection against dust and moisture, thereby extending the life of the lubricant and reducing the need for maintenance. The bearing is mounted using an eccentric mounting ring, which allows easy mounting and dismounting.

The outer ring of the bearing has a spherical shape, which allows compensation for misalignment between the bearing and the shaft. The inner ring is widened on one side, which increases stability and reduces the risk of the bearing shifting during operation. The bearing is designed for operation in the temperature range from -20 °C to +120 °C, which makes it suitable for a wide range of industrial applications.

The running accuracy of the bearing is in class P0/PN, or ABEC 1, which is the standard accuracy for common applications. The possibility of lubrication allows for an extension of the service interval and improvement of operating properties. The total weight of the bearing is 0.213 kg, which is optimal for applications where low component weight is important.

SKF YET 205-014 is an ideal choice for applications where reliability, accuracy and easy maintenance are required, while providing excellent operating properties in a wide range of conditions.
