SKF YAT 210 clamping bearing

Product detailed description

SKF YAT 210 is a clamping bearing designed for applications where reliable and precise support of rotating parts is required. This bearing is made of high-quality steel, which is standard for rolling bearings, and is designed to withstand temperature ranges from -20 °C to +120 °C, making it suitable for a wide range of industrial applications.

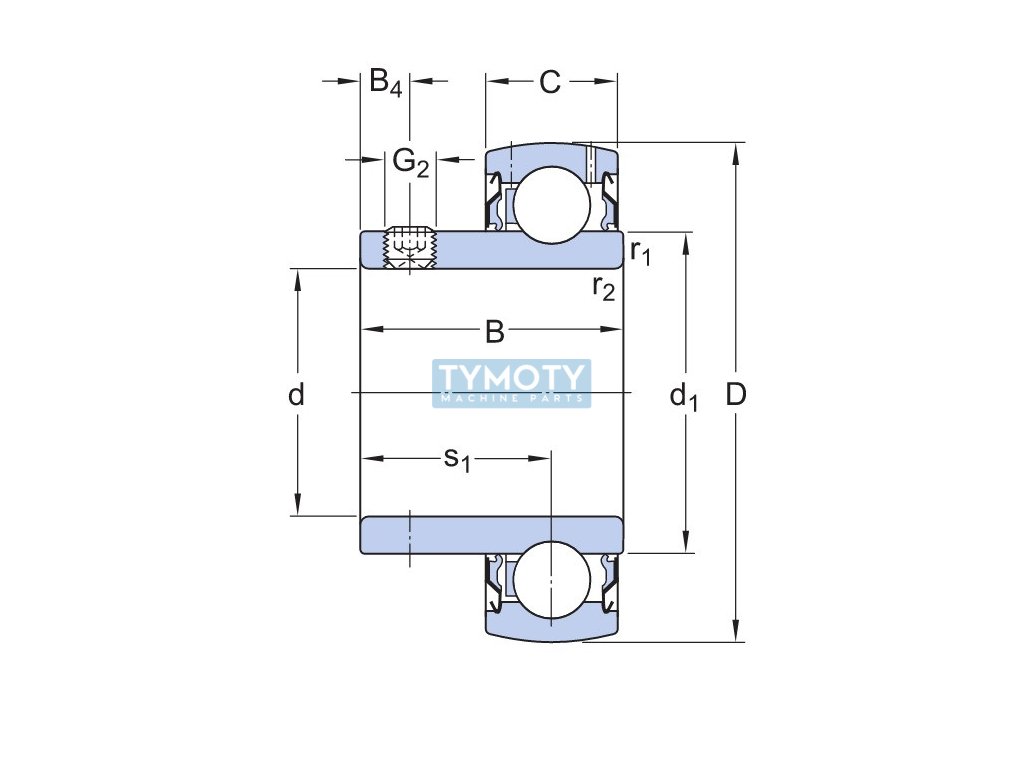

The bearing has an inner diameter (d) of 50 mm, an outer diameter (D) of 90 mm and a width (B) of 43 mm. The inner ring is widened on one side, which increases stability and allows efficient load transfer. The outer ring has a spherical shape, which facilitates mounting and allows compensation for misalignment between the bearing and the shaft. The bore profile is cylindrical, which is a standard shape for this type of bearing.

The bearing is equipped with a double-sided rubber contact seal, which provides protection against dust and dirt and extends the life of the bearing. The bearing is fixed to the shaft using set screws, which allows for easy and quick installation.

The running accuracy of the bearing is in accordance with the accuracy class P0/PN, or ABEC 1, which guarantees reliable and smooth operation under normal operating conditions. The total weight of the bearing is 0.618 kg, which is an important parameter in the design and optimization of mechanical systems.

SKF YAT 210 is an ideal choice for applications where high quality and reliability are required, while its design features allow for long-term operation with minimal maintenance.
