SKF W 6003-2Z stainless steel ball bearing

Product detailed description

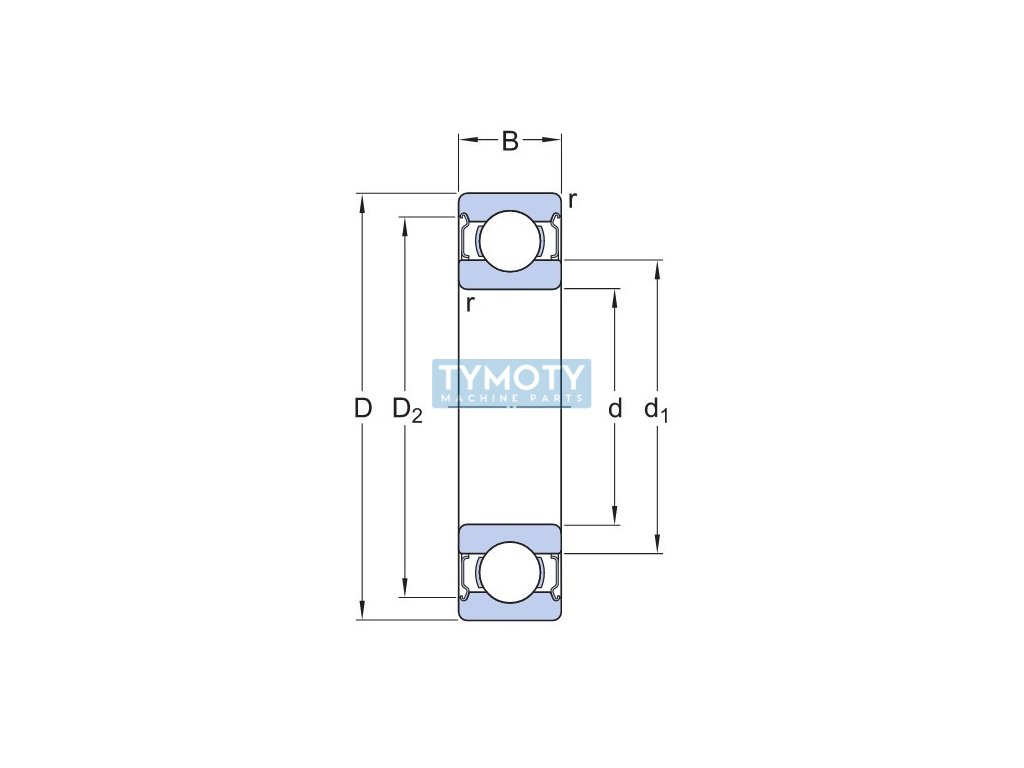

SKF W 6003-2Z is a stainless steel ball bearing designed for applications requiring high corrosion resistance and reliable performance in a variety of operating conditions. The bearing has an inner diameter of 17 mm, an outer diameter of 35 mm and a width of 10 mm. It is made of stainless steel, which ensures its high corrosion resistance and long service life even in harsh environments.

The bearing is equipped with a double-sided sheet metal cover, which provides protection against dust and other contaminants, thus extending its service life and reducing the need for maintenance. The shape of the outer ring is without a flange or groove, which allows easy mounting and dismounting. The inner profile is cylindrical, which is a standard shape for this type of bearing.

The bearing cage is made of pressed stainless steel, which increases its strength and wear resistance. The bearing has a normal radial clearance, which is suitable for most common applications. The running accuracy is in class P0/PN, or ABEC 1, which guarantees reliable and smooth operation at normal speeds.

The bearing's operating temperature range is from -20 °C to +120 °C, which allows it to be used in a wide range of temperature conditions. The bearing does not have insulation against the passage of electric current, which is important to consider when using it in electrical applications.

The SKF W 6003-2Z is a single-row bearing weighing 0.04 kg, which makes it lightweight and suitable for applications where low component weight is important. This combination of properties makes the bearing an ideal choice for various industrial sectors, including the food, chemical and pharmaceutical industries, where high corrosion resistance and reliable performance are required.
