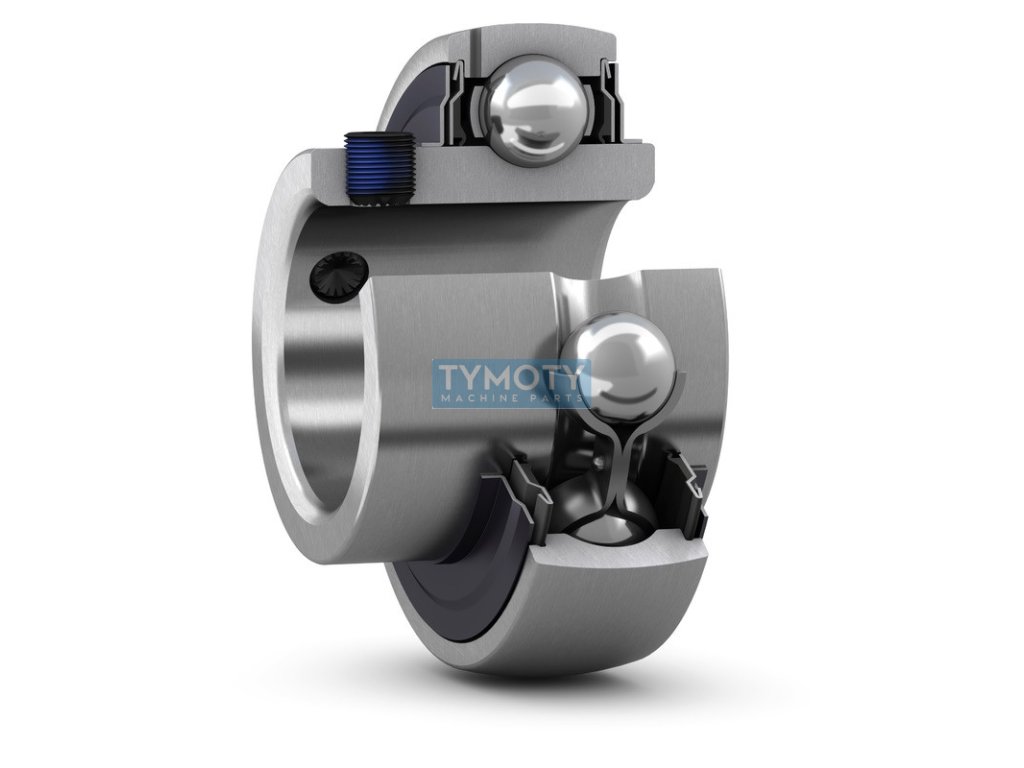

SKF UC 310 clamping bearing

Product detailed description

SKF UC 310 is a clamping bearing designed for efficient load transfer in various industrial applications. This bearing is made of high-quality standard steel for rolling bearings, which ensures its long service life and reliability in difficult operating conditions.

The bearing has an inner diameter (d) of 50 mm, an outer diameter (D) of 110 mm and a width (B) of 61 mm. The inner ring is widened on both sides, which allows for better load distribution and increases the stability of the entire system. The inner ring is equipped with set screws that ensure a firm fit of the bearing on the shaft. The outer ring has a spherical shape, which allows for compensation of misalignment between the shaft and the bearing housing.

The bearing is equipped with a double-sided contact seal that protects the internal components from dirt and moisture, thereby extending its service life and reducing the need for maintenance. The operating temperature range is from -20 °C to +120 °C, which allows its use in various climatic conditions.

SKF UC 310 meets the running accuracy of class P0/PN, or ABEC 1, which is the basic level of accuracy suitable for most common applications. The total weight of the bearing is 1.65 kg, which is optimal for its design and purpose of use.

This bearing is ideal for applications where reliability and durability are required, such as conveyor systems, agricultural machinery and various industrial equipment. Thanks to its design and quality materials, SKF UC 310 provides excellent performance and long service life.
