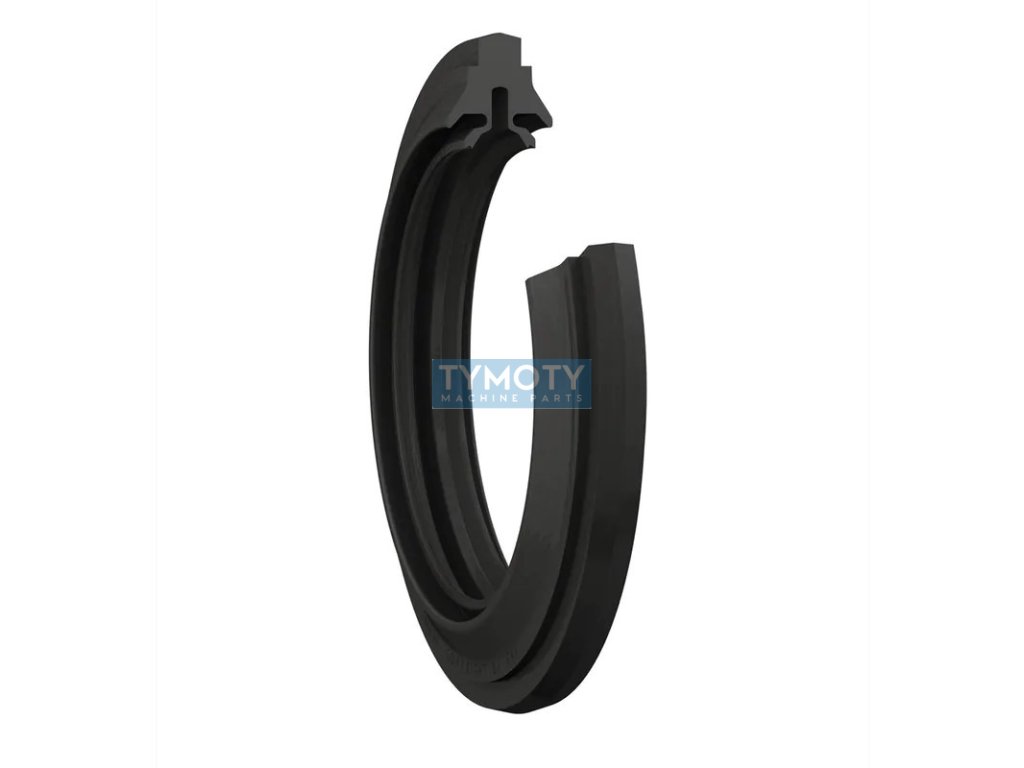

SKF TSN 522 L-2pcs body seal four-edged ring

Code: 390671
Not rated
30,96 € –8 %
SKF TSN 522 L-2pcs body seal four-edged ring
30,96 € –8 % 28,31 € / pcs 34,26 € incl. VAT
In stock (352 pcs)
Delivery to:
06/08/2025
Delivery offer
d=100 mm, D=157.5 mm, B=16 mm – bearing housing seal TSN 522 L – manufacturer SKF – four-lip, rubber, temperature range -40 to 100 °C, package contains 2 pcs.

Detailed information

Delivery throughout the EU

Product detailed description

Four-lip ring TSN 522 L-2pcs SKF - SKF SNL housing seals are the first barrier against contamination. Four-lip seals replace the previous double-lip seals. Four-lip seals are more efficient than double-lip seals and create less friction, allowing higher shaft speeds. For highly contaminated environments, SKF recommends a triple-barrier solution. This cost-effective sealing solution can have a significant impact on bearing life, as contaminants must pass through three barriers to reach the bearing. When ordering, please note that one item (seal pack) contains two seals (four halves). Good protection against contamination. They keep the lubricant in the housing.

Additional parameters

Category: Bearings > bearing bodies > for standard bearings > seal > four-edged
Weight: 0.09 kg
EAN: 7316572460511
Diameter D (mm): 100, 155,1
Manufacturer's brand: SKF
Material: rubber
Width B (mm): 16
Značení: TSN 522 L
Typ: těsnění ložiskového tělesa
