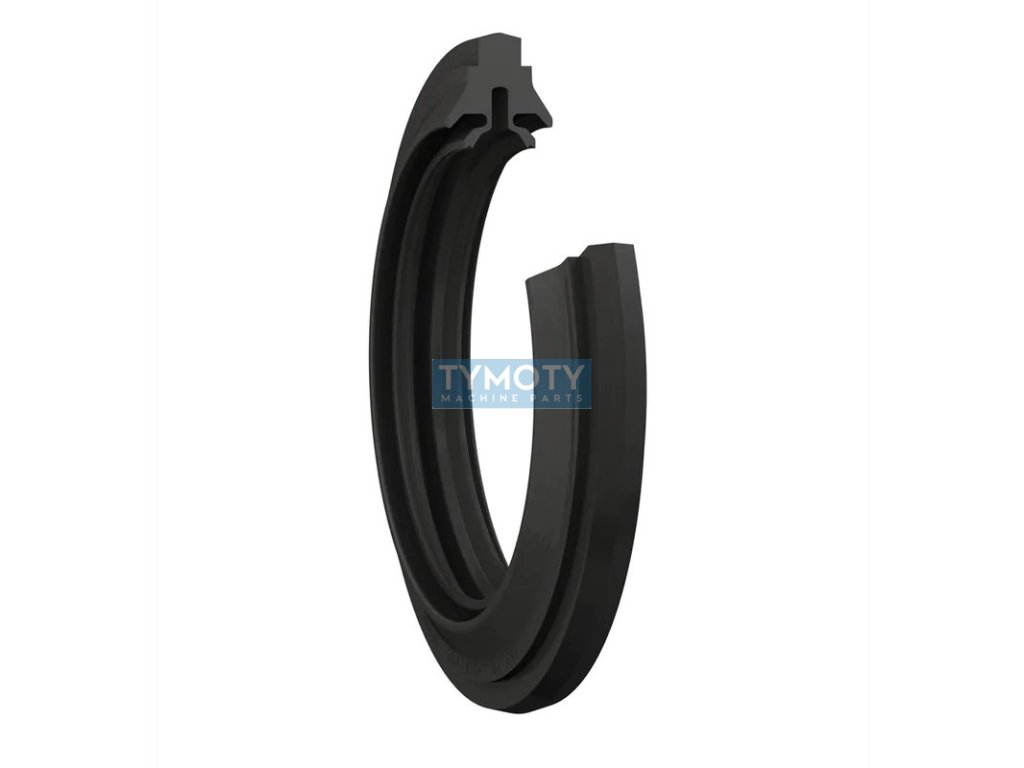

SKF TSN 512 L-2pcs body seal four-edged ring

Code: 390662
Not rated
11,44 € –2 %
SKF TSN 512 L-2pcs body seal four-edged ring
11,44 € –2 % 11,20 € / pcs 13,55 € incl. VAT
In stock (63 pcs)
Delivery to:
06/08/2025
Delivery offer
Four-blade ring TSN 512 L from SKF, diameter 53.5/78.6 mm, width 13.5 mm, made of rubber, temperature range -40 to 100 °C, effective sealing of the bearing housing. Package contains 2 pcs.

Detailed information

Delivery throughout the EU

Product detailed description

SKF TSN 512 L-2pcs SKF - SKF SNL housing seals are the first barrier against contamination. The four-lip seal replaces the previous double-lip seal. Four-lip seals are more efficient than double-lip seals and create less friction, allowing higher shaft speeds. For highly contaminated environments, SKF recommends a triple-barrier solution. This cost-effective sealing solution can have a significant impact on bearing life, as contaminants must pass through three barriers to reach the bearing. When ordering, please note that one item (seal pack) contains two seals (four halves). Good protection against contamination. They keep the lubricant in the housing.

Additional parameters

Category: Bearings > bearing bodies > for standard bearings > seal > four-edged
Weight: 0.014 kg
EAN: 7316572460610
Diameter D (mm): 53,5, 78,6
Manufacturer's brand: SKF
Material: rubber
Width B (mm): 13,5
Značení: TSN 512 L
Typ: těsnění ložiskového tělesa
