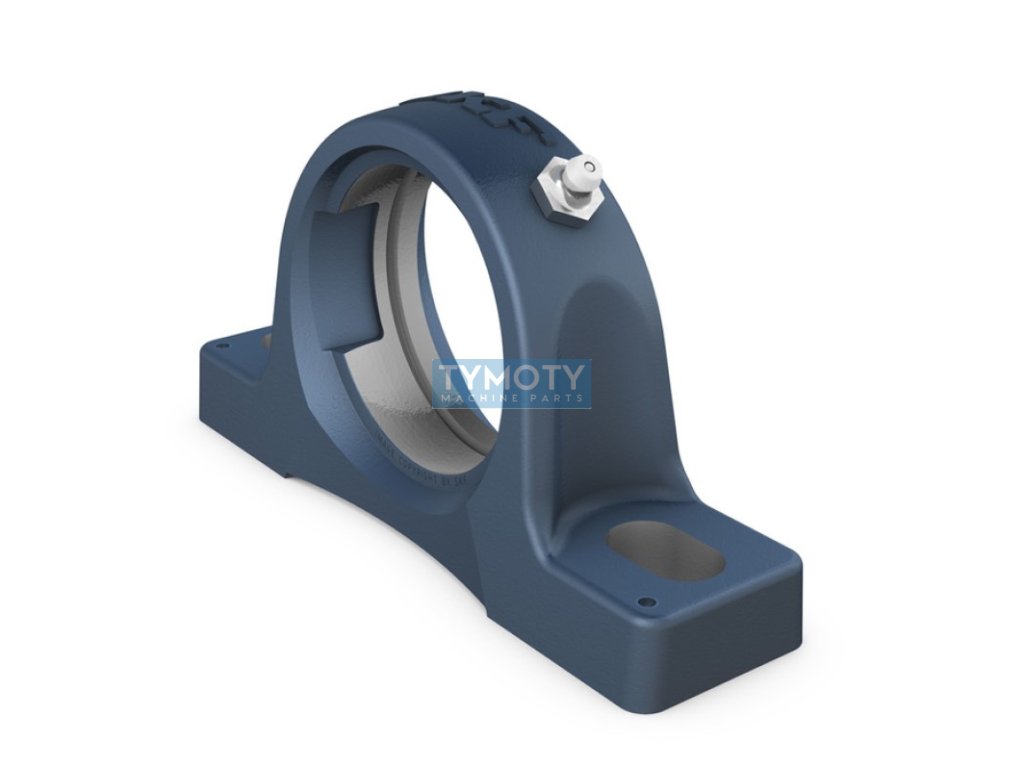

SKF SY 507 M stationary bearing housing

Product detailed description

The SKF SY 507 M plummer block is a robust component designed to support and secure bearings in a variety of industrial applications. The block is made from high-quality grey cast iron, which is known for its high strength and wear resistance, ensuring long life and reliability in harsh operating conditions. The dark blue finish provides additional corrosion protection and enhances the aesthetic appearance of the block.

The SKF SY 507 M is a one-piece block, meaning it is constructed as a single unit without the need for additional assembly, making installation and maintenance easier. With an inner diameter of 72 mm and an outer diameter of 160 mm, it is suitable for a wide range of bearings. The block width is 45 mm, providing sufficient stability and support for the bearing.

The housing can be mounted from both the top and bottom, which provides flexibility in installation and allows it to be used in various design solutions. The weight of the housing is 1.061 kg, which is optimal for handling and installation without the need for special equipment.

SKF, as a renowned manufacturer of bearings and bearing housings, guarantees high quality and reliability of its products. The model SY 507 M is marked with the code SY507M, which makes it easy to identify and order. This component is ideal for applications where high accuracy and reliability of the bearing arrangement are required.
