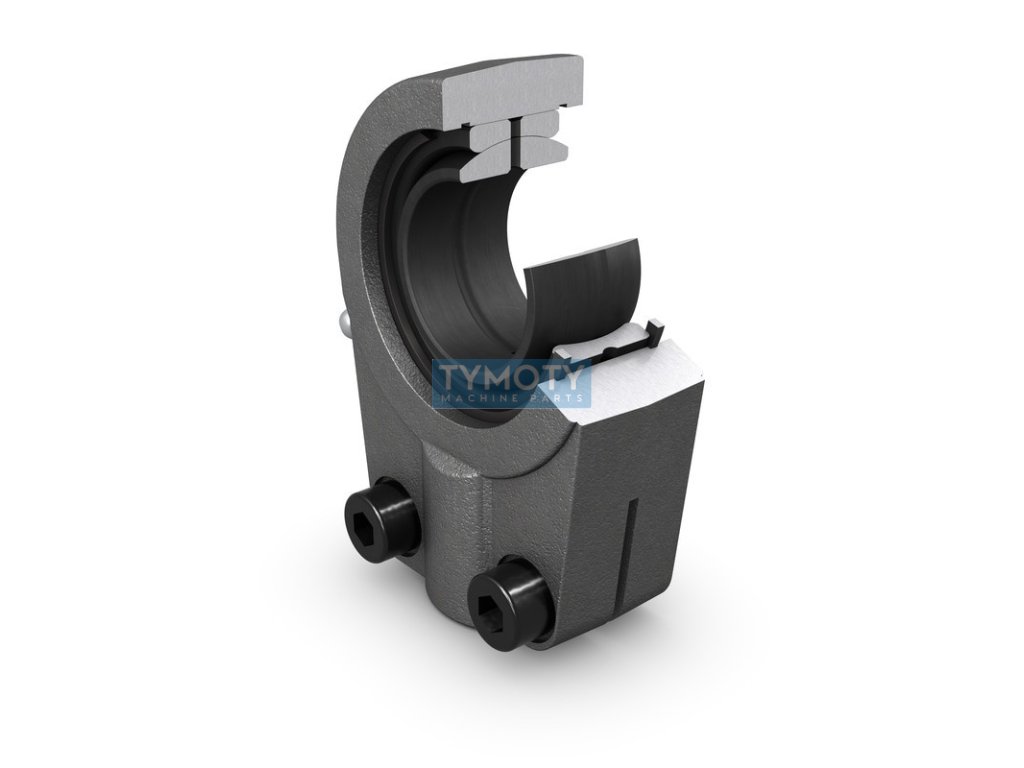

SKF SIR 20 ES joint head
Code: 399151
Product detailed description
Rod end, internal right-hand metric thread, bearing steel/steel, for hydraulic cylinders.Additional parameters
| Category: | Bearings > slippery > articulated heads > for hydraulic cylinders > internal thread, steel-steel (SIR..ES, GIHRK..-DO) > d = 20 mm thread M16x1.5 |
|---|---|
| Weight: | 0.417 kg |
| EAN: | 7316577003638 |

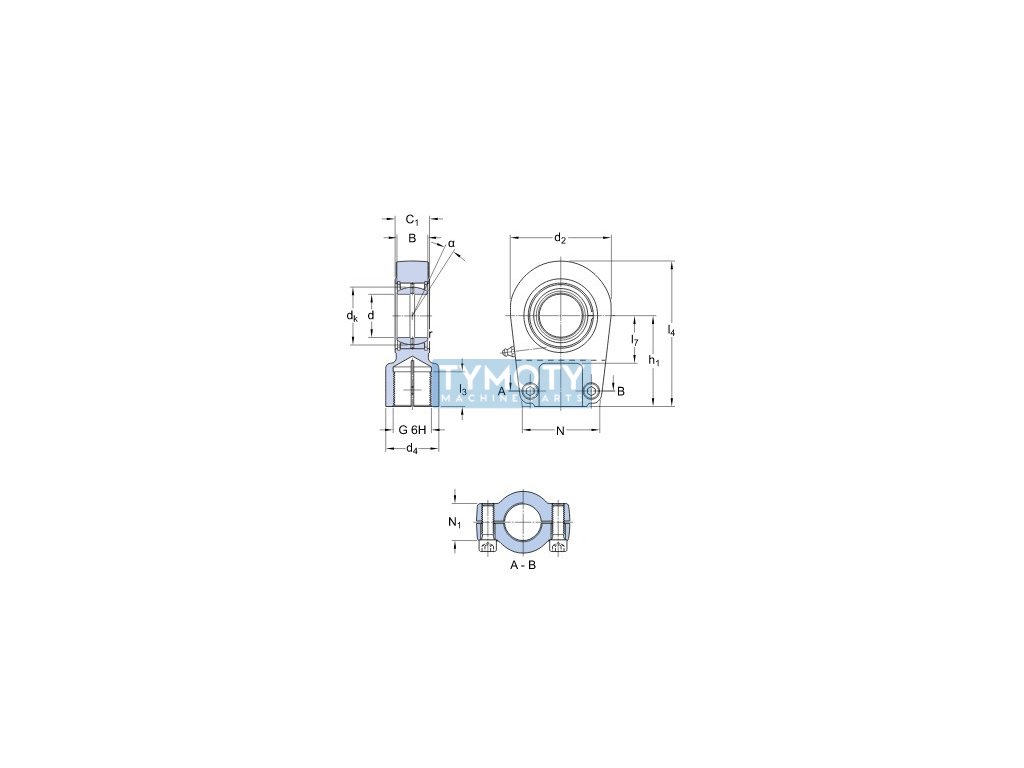

| Angle ( ° ): | 9 |
| Diameter D (mm): | 20, 57,5 |
| Diameter D2 (mm): | 58 |
| Diameter d4 (mm): | 26,5 |
| Diameter dk (mm): | 29 |
| Height H1 (mm): | 50 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 17 |
| Length l4 (mm): | 81 |
| Length l7 (mm): | 24 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Pitch N1 (mm): | 22 |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Spacing N (mm): | 46 |
| Thread G: | M 16x1,5 |
| Width B (mm): | 16 |
| Width C1 (mm): | 19,5 |
| Značení: | SIR 20 ES |
| Typ: | kloubová hlavice |
