SKF SILKB 14 F articulated head
Code: 399176
Product detailed description

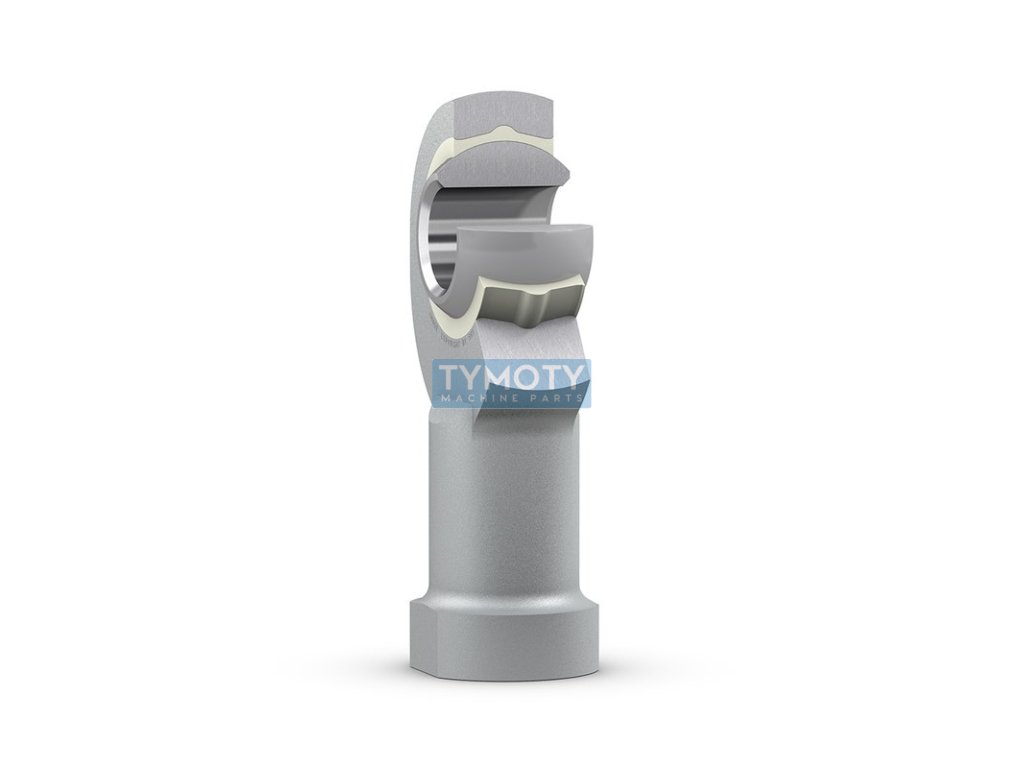

Rod end, internal left-hand metric thread, sliding surface-steel/PTFE FRP, maintenance-free. Between the housing and the inner ring of the bearing there is a sliding layer of glass-fibre reinforced polymer with PTFE content, which is pressed into the housing. Suitable for heavy loads with constant direction.Additional parameters

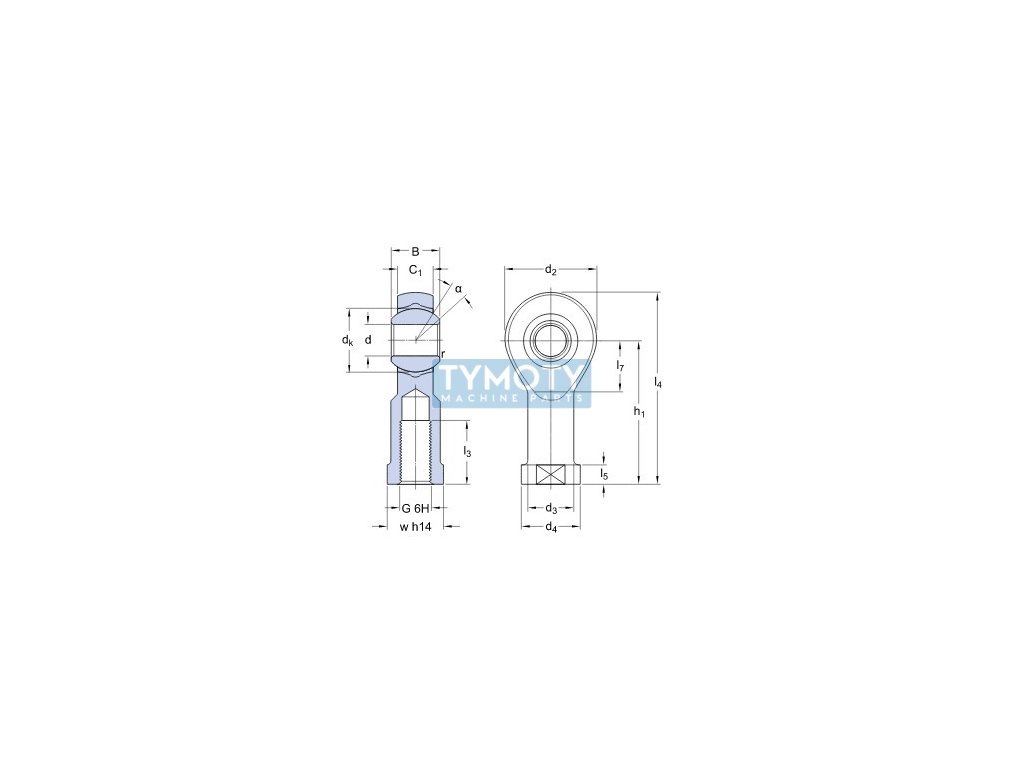

| Category: | Bearings > slippery > articulated heads > internal left-hand thread > hard chrome-PTFE FRP (SILKB..F) > d=14 mm thread M14 left |
|---|---|
| Weight: | 0.174 kg |
| EAN: | 7316577030276 |
| Angle ( ° ): | 16 |
| Diameter D (mm): | 14, 37 |
| Diameter D2 (mm): | 37 |
| Diameter d3 (mm): | 20 |
| Diameter d4 (mm): | 27 |
| Diameter dk (mm): | 25,4 |
| Height H1 (mm): | 57 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 21 |
| Length l4 (mm): | 77 |
| Length l5 (mm): | 8 |
| Length l7 (mm): | 18 |
| Manufacturer's brand: | SKF |
| Material: | steel-PTFE FRP |
| Maximum temperature °C: | + 75 |
| Minimum temperature °C: | - 40 |
| Radius r (mm): | 0,3 |
| Thread G: | M 14 left |
| Width B (mm): | 19 |
| Width C1 (mm): | 14,5 |
| Značení: | SILKB 14 F |
| Typ: | kloubová hlavice |
