SKF SILKAC 30 M articulated head

Product detailed description

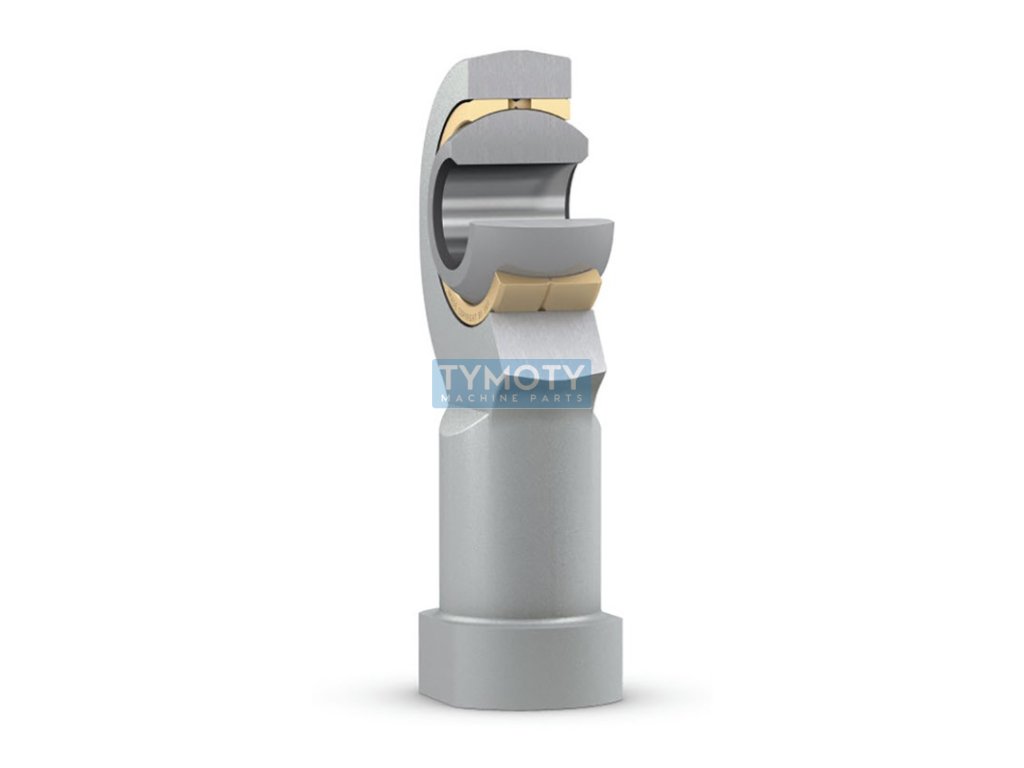

SKF SILKAC 30 M is a rod end designed for applications requiring reliable and precise force transmission in mechanical systems. This head is equipped with an internal left-hand metric thread M30x2, which allows it to be easily integrated into systems with compatible threaded connections.

The head is constructed with a steel and bronze bearing, which provides an optimal combination of strength and wear resistance. The steel part ensures high strength and stability, while the bronze components reduce friction and improve sliding properties. This design requires regular maintenance, which is important for maintaining long-term functionality and reliability.

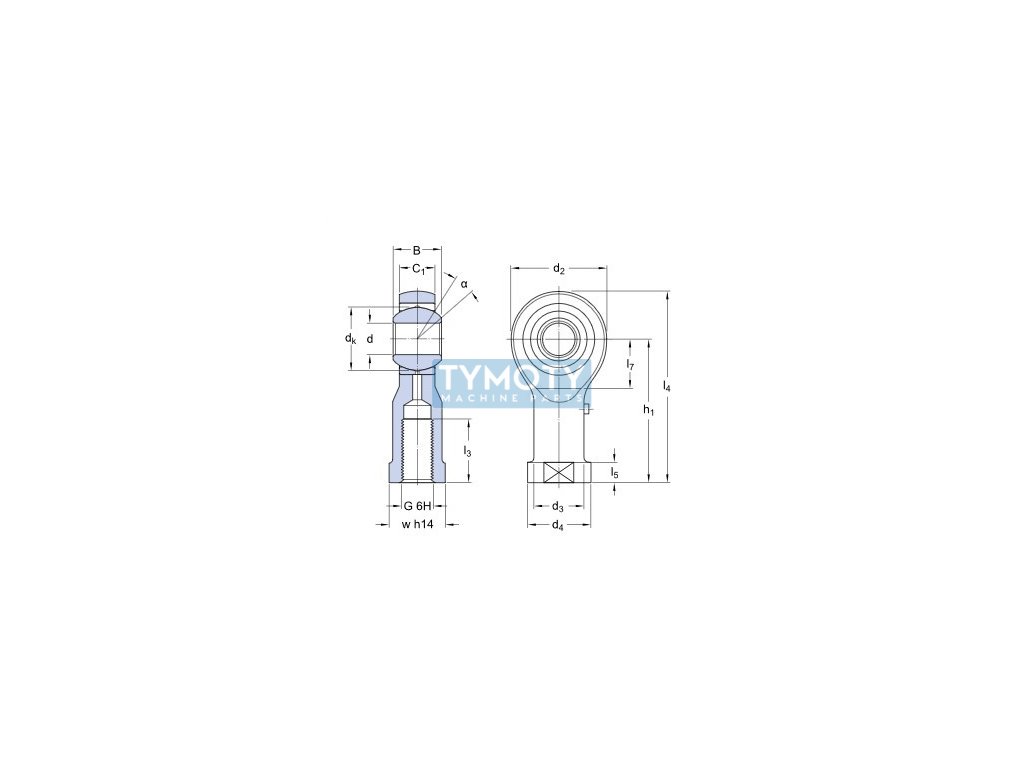

The dimensions of the head are precisely defined: diameter d is 30 mm, diameter D and d2 is 71 mm, width B is 37 mm and total length l4 is 146 mm. Other important dimensions include a length of l3 of at least 45 mm, l5 of 15 mm and l7 of 35 mm. The radius r is 0.3 mm, which contributes to the precise seating and movement of the bearing. The diameter d3 is 40 mm, d4 is 52 mm and the diameter dk is 50.8 mm. The width C1 is 27 mm and the height h1 is 110 mm.

The head is equipped with a lubrication hole, which allows easy application of lubricant and thus extends the life of the component. The movement angle is 17°, which provides sufficient flexibility for various applications. The total weight of the head is 1.15 kg, which is suitable for applications where control of the weight of the components is important.

SKF SILKAC 30 M is an ideal solution for industrial applications where high precision and reliability in force transmission are required. Its design and material design guarantee a long service life and efficient operation in demanding conditions.
