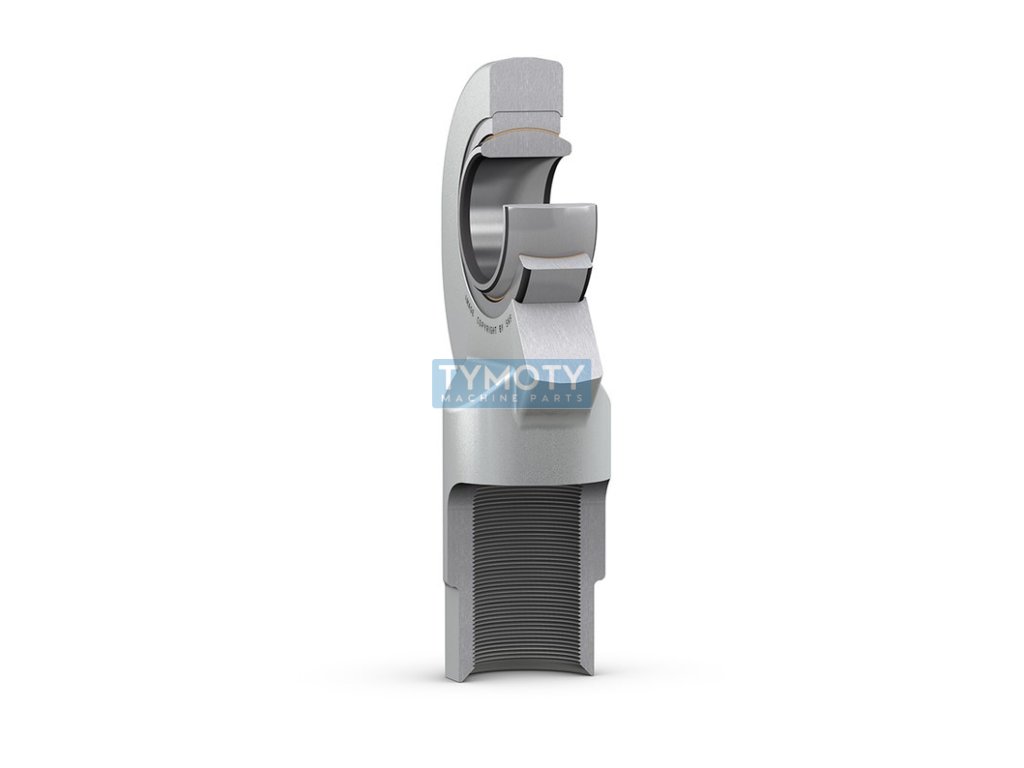

SKF SIL 20 C articulated head

Product detailed description

SKF SIL 20 C is a rod end designed for applications where it is necessary to transfer motion and load between two components with the possibility of angular deflection. This head is equipped with an internal left-hand thread M20x1.5, which allows it to be easily mounted in the appropriate threaded hole.

The head has an internal diameter d 20 mm and an external diameter D 54 mm, which guarantees sufficient strength and stability when transferring loads. The width B is 16 mm, which, together with other dimensions such as length l4 106 mm and height h1 77 mm, provides a compact solution for various mechanical assemblies.

The material composition of the head is a combination of steel and PTFE composite. Steel provides high strength and resistance to mechanical wear, while the PTFE (polytetrafluoroethylene) layer ensures a low coefficient of friction and improved sliding properties, which is ideal for applications with a high number of cycles or where minimal maintenance is required.

The hole profile is cylindrical, which allows for a precise and firm fit on the corresponding pin or axis. The diameter dk of 29 mm and the diameter d4 of 39 mm are optimized for effective load distribution and minimizing wear.

The overall design and material properties of this rod end predetermine it for use in industrial applications where high reliability and long component life are required, such as hydraulic and pneumatic systems, construction machinery or transportation equipment.
