SKF SIKAC 8 M articulated head

Product detailed description

SKF SIKAC 8 M is a rod end with an internal metric right-hand thread M8, designed for applications requiring reliable transmission of forces and movements in mechanical systems. This component is made of high-quality materials, namely steel and bronze, which guarantees its long service life and wear resistance.

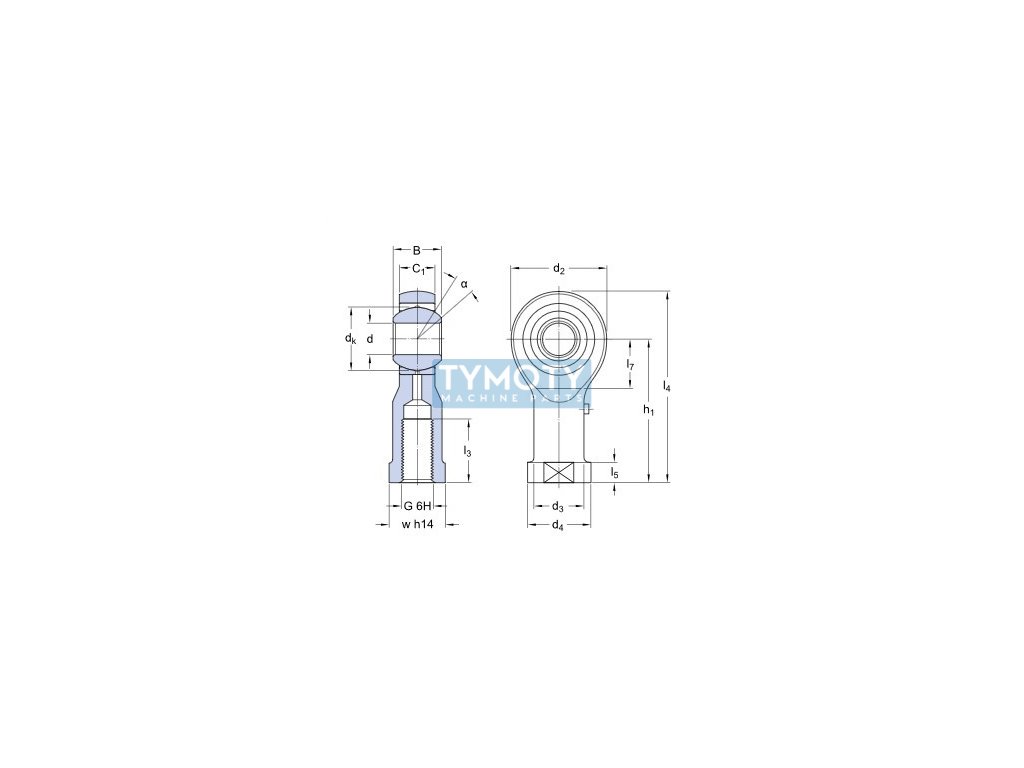

The rod end has a diameter of d 8 mm and a diameter of d2 and D 25 mm, which allows its integration into various mechanical assemblies. The width B is 12 mm, while the total length l4 reaches 49 mm. The minimum length l3 is 12 mm, which provides sufficient space for assembly adjustments. The lengths l5 and l7 are 5 mm and 12 mm, respectively, which contributes to precise adjustment and stability in use.

The rod end has a radius r of 0.3 mm, which improves its mobility and reduces friction. The diameter d3 is 12.5 mm and d4 is 17 mm, which allows compatibility with various types of bearings and connecting elements. The diameter dk is 15.8 mm and the width C1 is 7.5 mm, which are important parameters for proper seating and functionality within the mechanism.

The height h1 is 36 mm, which provides sufficient height for effective force transmission. The hole profile is cylindrical, which is a standard shape for this type of component, allowing easy assembly and disassembly. The movement angle is 14°, which provides sufficient flexibility for various applications.

This rod end is ideal for use in industrial and mechanical applications where high precision and reliability are required. Thanks to the SKF brand, which is known for its quality and innovation in the field of bearings and related components, the SIKAC 8 M is a reliable choice for professionals looking for quality solutions for their mechanical systems.
