SKF SIKAC 10 M/VZ019 articulated head
Code: 399032
Product detailed description

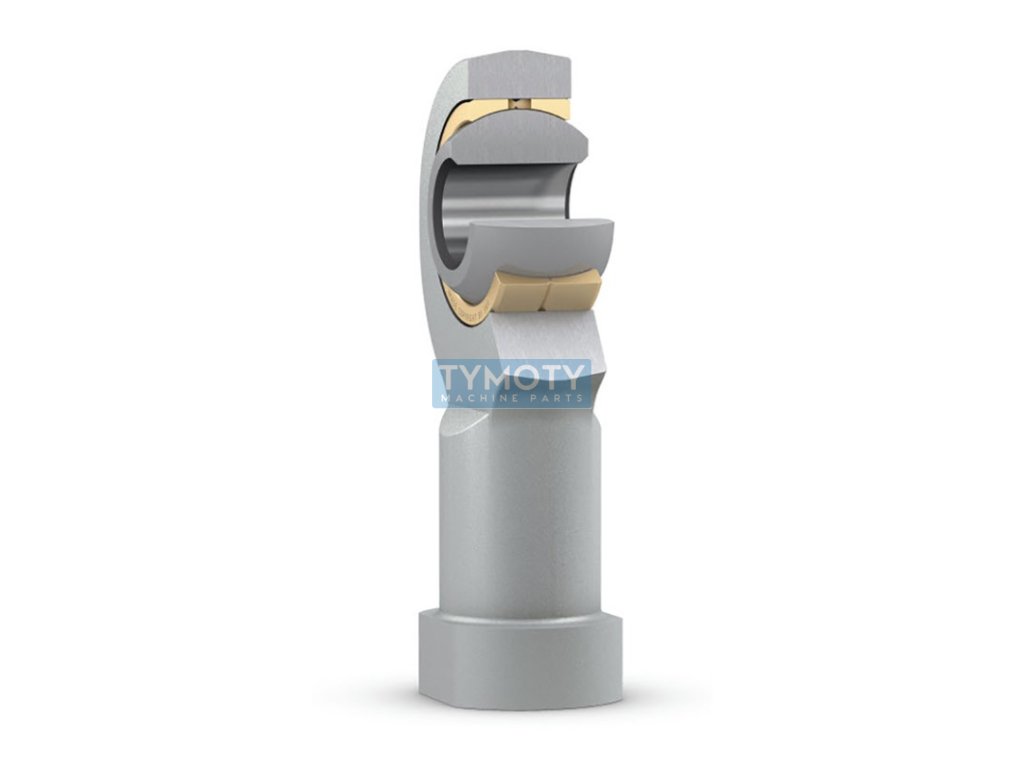

Rod end, internal right metric thread, bearing-steel/bronzeAdditional parameters

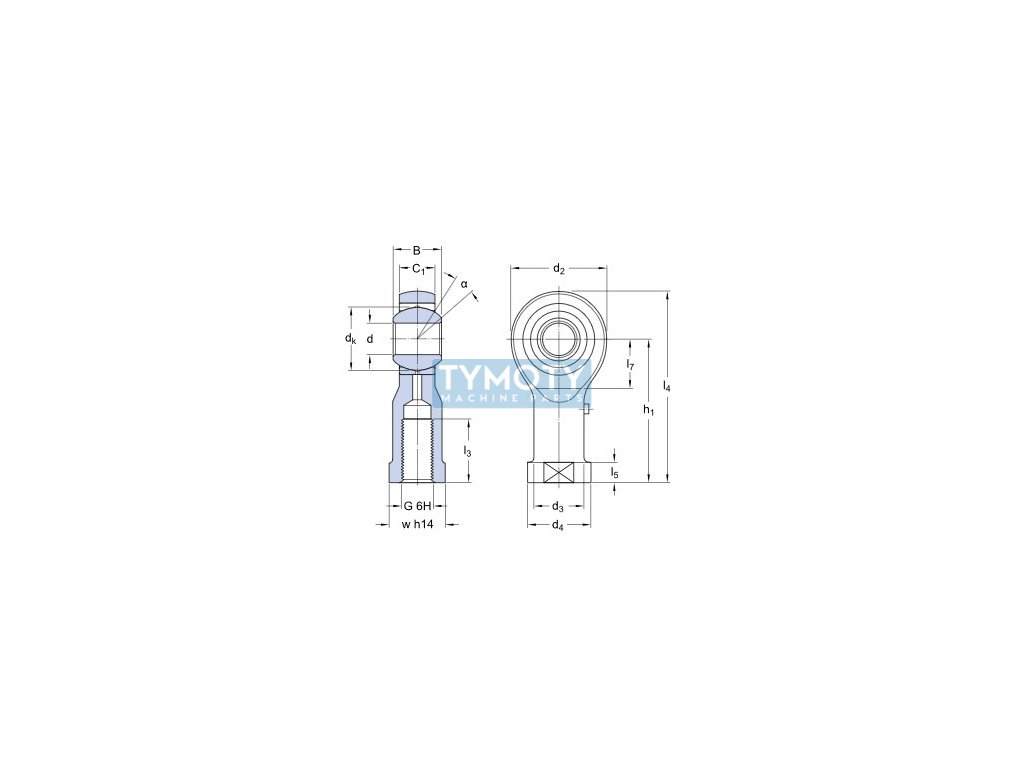

| Category: | Bearings > slippery > articulated heads > internal right-hand thread > steel-bronze (SIKAC..M, GIKR..PB) > d=10 mm thread M10x1.25 |
|---|---|
| Weight: | 0.079 kg |
| EAN: | 7316570857719 |
| Angle ( ° ): | 13 |
| Diameter D (mm): | 10, 29 |
| Diameter D2 (mm): | 29 |
| Diameter d3 (mm): | 15 |
| Diameter d4 (mm): | 20 |
| Diameter dk (mm): | 19 |
| Height H1 (mm): | 43 |
| Hole profile: | cylindrical |
| Length l3 (mm) min.: | 15 |
| Length l4 (mm): | 58 |
| Length l5 (mm): | 6,5 |
| Length l7 (mm): | 14 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Thread G: | M 10X1,25 |
| Width B (mm): | 14 |
| Width C1 (mm): | 11,5 |
| Značení: | SIKAC 10 M/VZ019 |
| Typ: | kloubová hlavice |
