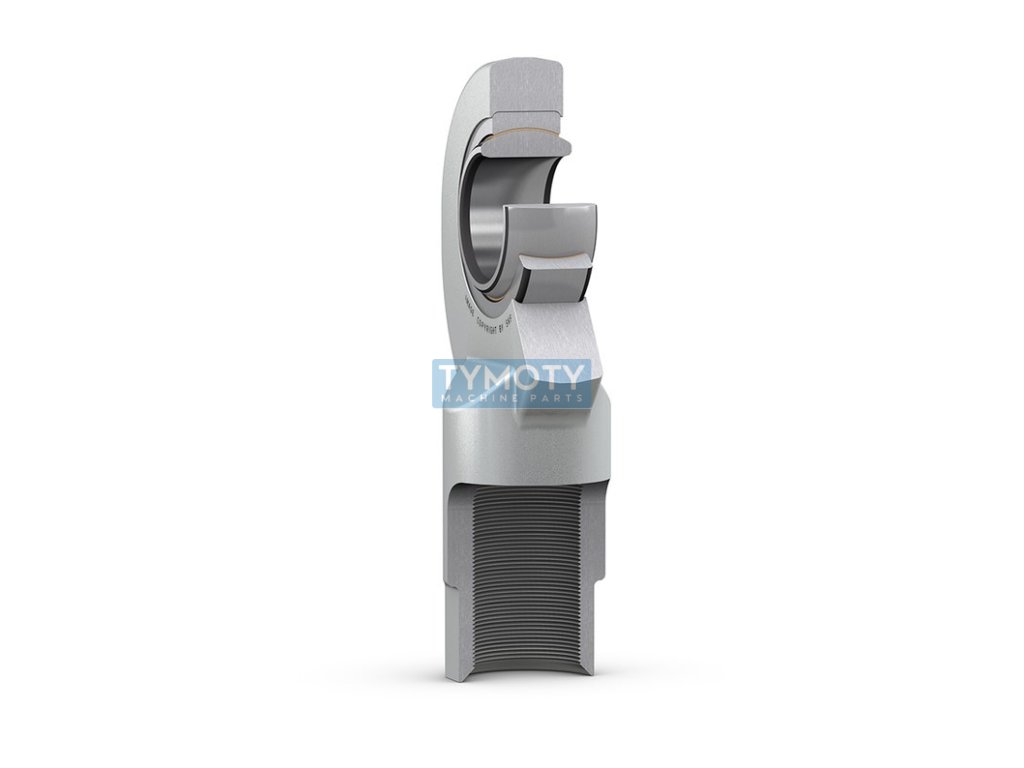

SKF SI 20 C articulated head

Product detailed description

SKF SI 20 C rod end is a high-quality component designed for applications where it is necessary to transmit motion between two parts of the mechanism with the possibility of angular deflection. This type of rod end is equipped with an internal right-hand thread M20x1.5, which allows easy installation in the relevant equipment.

The rod end has a diameter d 20 mm and an outer diameter D 54 mm, which ensures sufficient strength and stability when transferring loads. The width B is 16 mm, which is important for determining the overall profile and compatibility with other components. The length l4 is 106 mm, while the minimum length l3 is 30 mm, which provides flexibility in installation and adjustment.

The material composition is a combination of steel and PTFE composite. Steel provides high strength and resistance to mechanical wear, while the PTFE (polytetrafluoroethylene) composite ensures a low coefficient of friction and good sliding properties, which is ideal for applications with a high number of cycles or where maintenance needs to be minimized.

The hole profile is cylindrical, which is a standard shape for this type of component, allowing easy integration into various mechanical systems. The diameter dk is 29 mm and the diameter d4 is 28 mm, which are key dimensions for correct seating in the application. The width C1 is 13.5 mm and the height h1 is 77 mm, which are other important dimensions for accurate engineering calculations and structural design.

SKF, as a renowned manufacturer, guarantees high quality and reliability of its products, which makes the SI 20 C rod end an ideal choice for various industrial applications, including mechanical engineering, the automotive industry and other areas where reliable and precise motion transmission is required.
