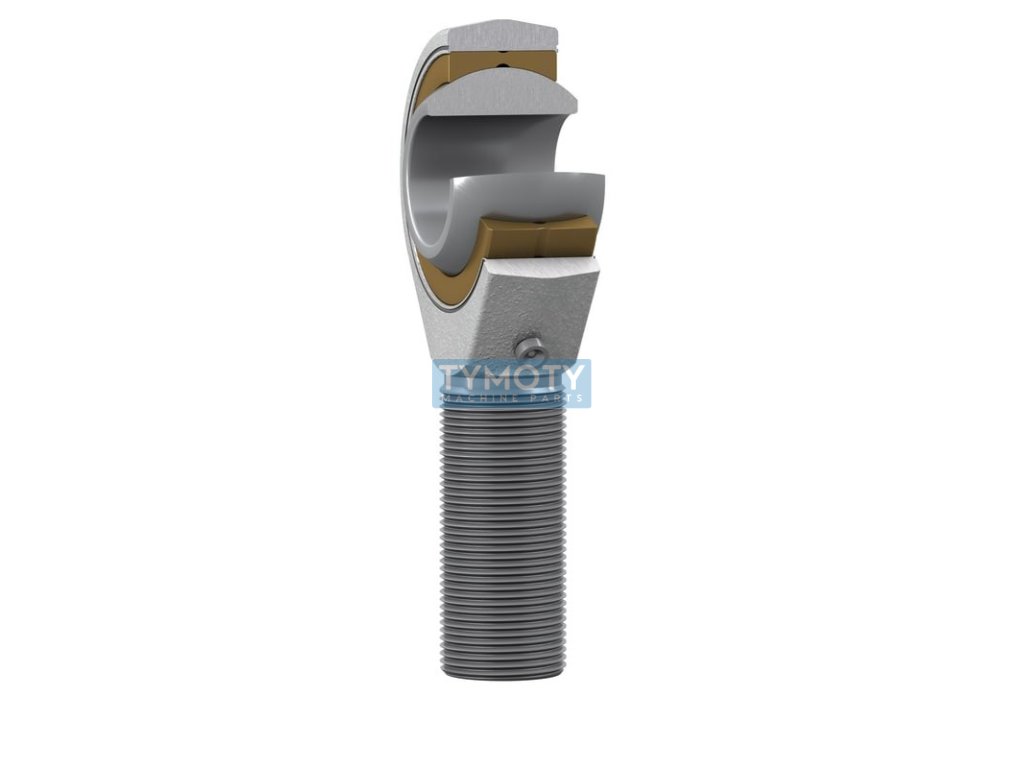

SKF SALKAC 16 M articulated head
Code: 399159
Product detailed description
Rod end, external left-hand metric thread, bearing-steel/bronzeAdditional parameters
| Category: | Bearings > slippery > articulated heads > external left-hand thread > steel-bronze (SALKAC..M, GAKL..PB) > d=16 mm thread M16 left |
|---|---|
| Weight: | 0.21 kg |
| EAN: | 7316577001924 |
| Angle ( ° ): | 16 |
| Diameter D (mm): | 16, 43 |
| Diameter D2 (mm): | 43 |
| Diameter dk (mm): | 28,5 |
| Height H (mm): | 66 |
| Hole profile: | cylindrical |
| Length L1 (mm): | 37 |
| Length L2 (mm): | 89 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Seal: | without gaskets |
| Thread G: | M 16 left |
| Width B (mm): | 21 |
| Width C1 (mm): | 15 |
| Značení: | SALKAC 16 M |
| Typ: | kloubová hlavice |
