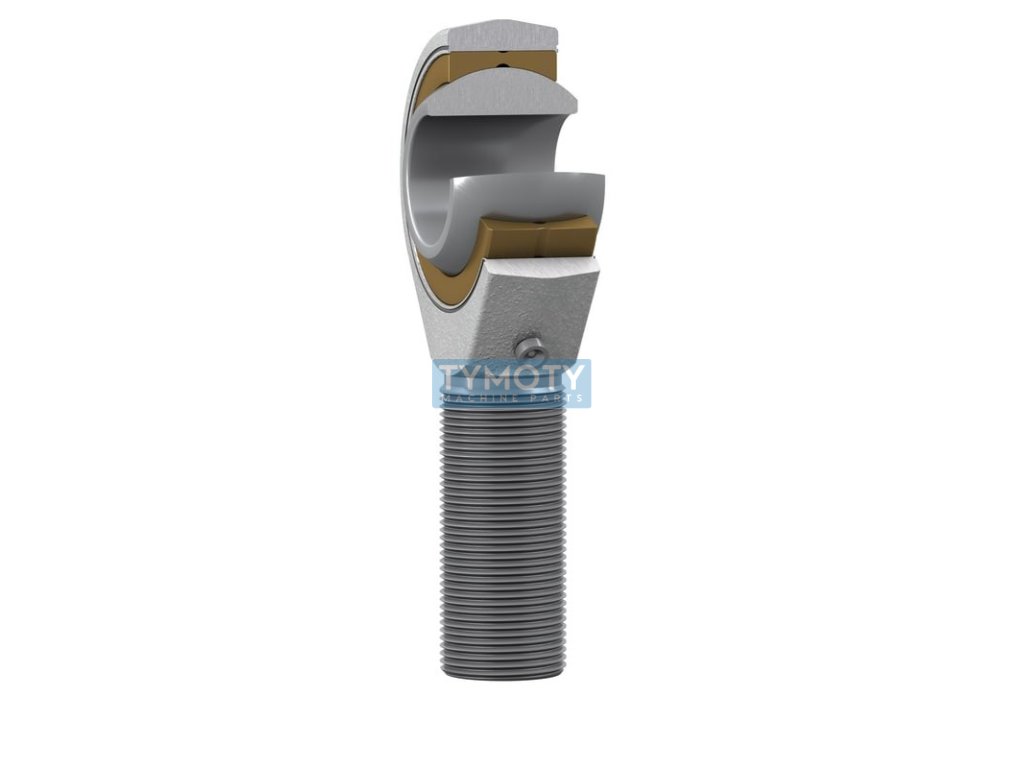

SKF SAKAC 6 M articulated head
Code: 399142
Product detailed description
Rod end, external right metric thread, bearing-steel/bronzeAdditional parameters
| Category: | Bearings > slippery > articulated heads > external right hand thread > steel-bronze (SAKAC..M, GAKR..PB) > d=6 mm thread M6 |
|---|---|
| Weight: | 0.021 kg |
| EAN: | 7316577030078 |
| Angle ( ° ): | 13 |
| Diameter D (mm): | 6, 21 |
| Diameter D2 (mm): | 21 |
| Diameter dk (mm): | 12,7 |
| Height H (mm): | 36 |
| Hole profile: | cylindrical |
| Length L1 (mm): | 21 |
| Length L2 (mm): | 48 |
| Manufacturer's brand: | SKF |
| Material: | steel-steel |
| Radius r (mm): | 0,3 |
| Thread G: | M 6 |
| Width B (mm): | 9 |
| Width C1 (mm): | 7,5 |
| Značení: | SAKAC 6 M |
| Typ: | kloubová hlavice |
