SKF PRMF 657060 sliding flange bushing, coiled bronze belt
Code: 309383
Product detailed description

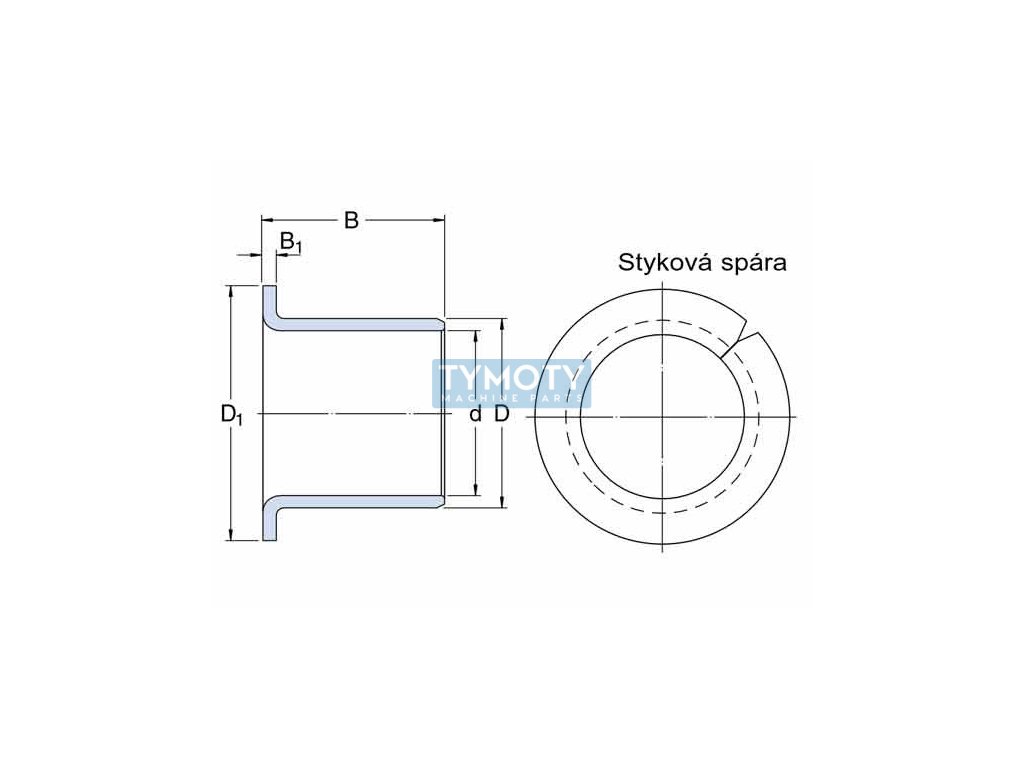

PRMF 657060 is a cylindrical flanged plain bearing rolled from bronze strip. The bronze strip is made of tin bronze CuSn8. The strips of this material are rolled into a cylinder and the working surface is provided with diamond pockets. These pockets then serve as lubricant reservoirs. These bearings are suitable for both radial and axial movement and withstand shock loads and vibrations well. They can be lubricated with oil and grease and are suitable for temperatures from -40 ° C to +150 ° C.65x70x60/80x2.5Additional parameters
| Category: | Bearings > slippery > flanged bushings > coiled bronze belt |
|---|---|
| Weight: | 0.29 kg |
| EAN: | 7316571397405 |
| Diameter D (mm): | 70, 65 |
| Diameter d1 (mm): | 80 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 60 |
| Width B1 (mm): | 2,5 |
| Značení: | PRMF 657060 |
| Typ: | přírubové kluzné pouzdro ze slinutého bronzového pásu |
