SKF PRMF 606560 sliding flange bushing, coiled bronze belt
Code: 309382
Product detailed description

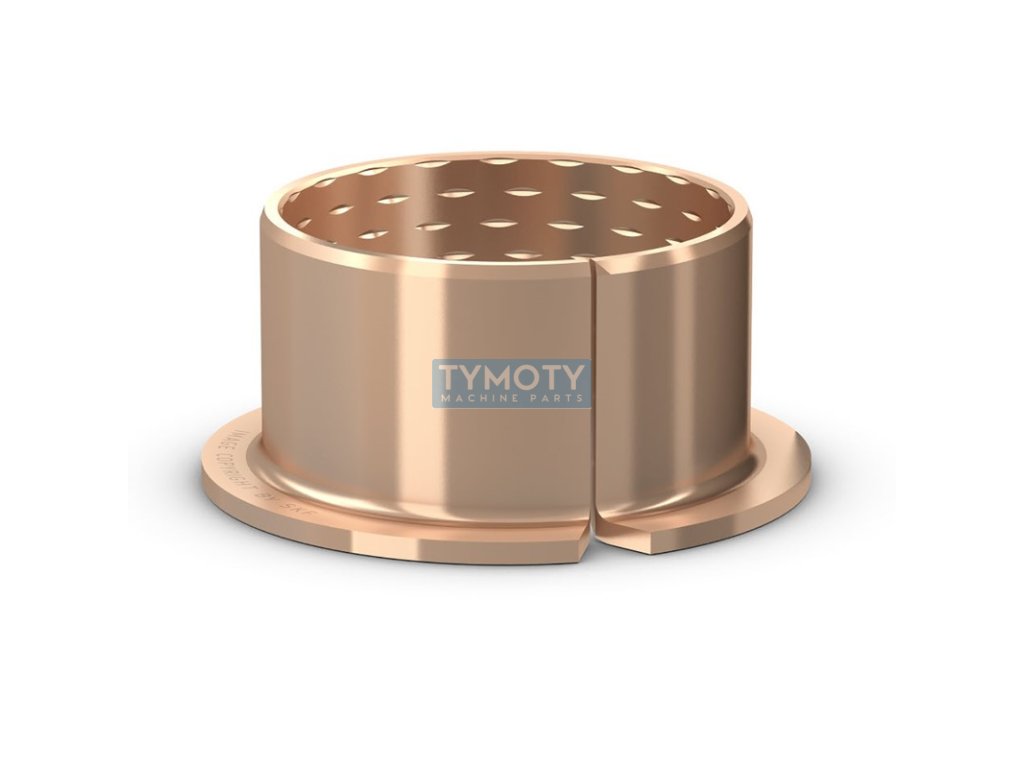

PRMF 606560 is a cylindrical flanged plain bushing rolled from bronze strip. The bronze strip is made of tin bronze CuSn8. The strips of this material are rolled into a cylinder and the working surface is provided with diamond pockets. These pockets then serve as lubricant reservoirs. These bushings are suitable for both radial and axial movement and withstand shock loads and vibrations well. They can be lubricated with oil and grease and are suitable for temperatures from -40 ° C to +150 ° C.60x65x60/75x2.5Additional parameters
| Category: | Bearings > slippery > flanged bushings > coiled bronze belt |
|---|---|
| Weight: | 0.26 kg |
| EAN: | 7316571397399 |

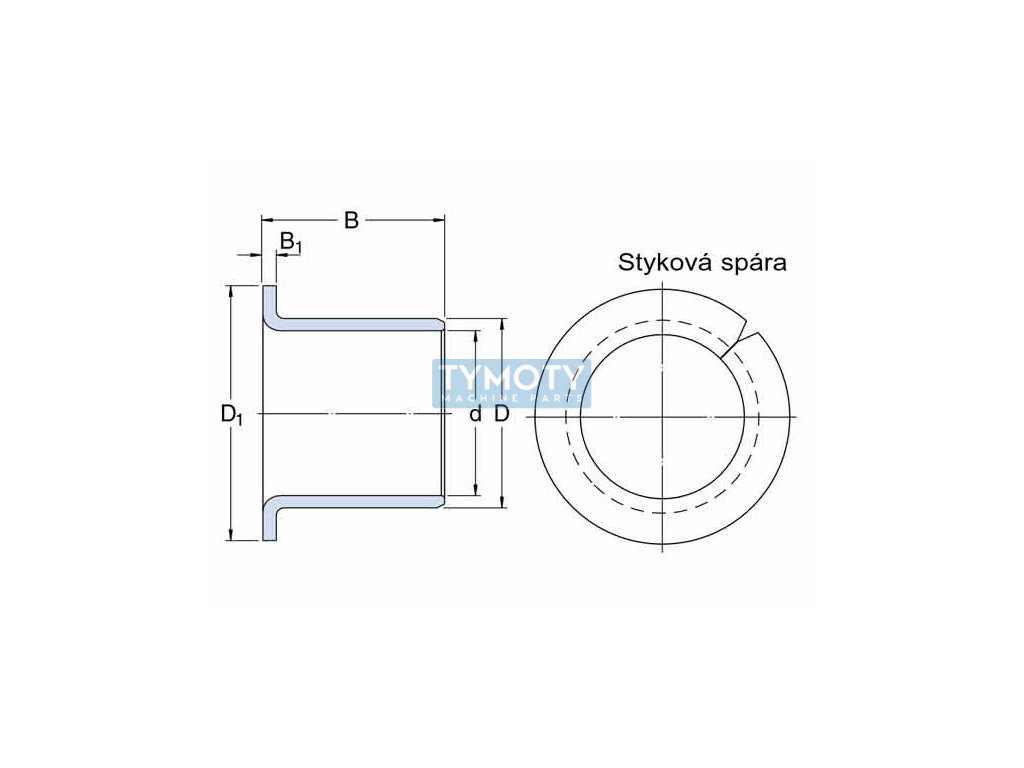

| Diameter D (mm): | 60, 65 |
| Diameter d1 (mm): | 75 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 60 |
| Width B1 (mm): | 2,5 |
| Značení: | PRMF 606560 |
| Typ: | přírubové kluzné pouzdro ze slinutého bronzového pásu |
