SKF PRMF 404425 bushing sliding flange, coiled bronze belt
Code: 309377
Product detailed description

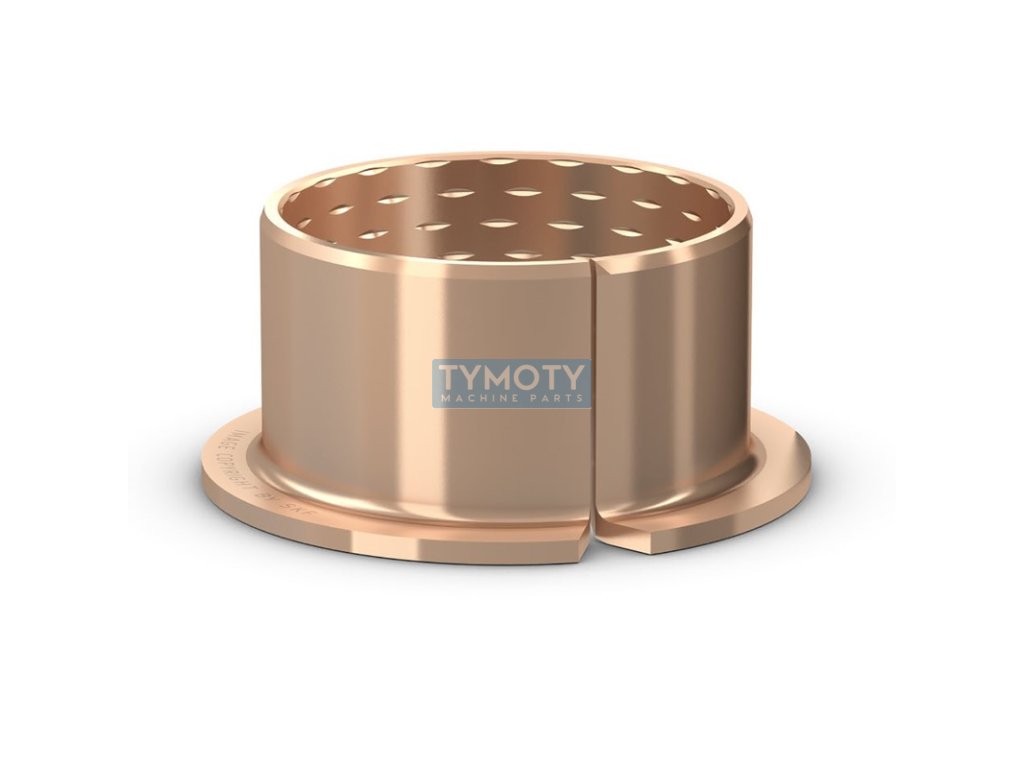

PRMF 404425 is a cylindrical flanged plain bearing rolled from bronze strip. The bronze strip is made of tin bronze CuSn8. The strips of this material are rolled into a cylinder and the working surface is provided with diamond pockets. These pockets then serve as lubricant reservoirs. These bearings are suitable for both radial and axial movement and withstand shock loads and vibrations well. They can be lubricated with oil and grease and are suitable for temperatures from -40 ° C to +150 ° C. 40x44x25/55x2Additional parameters
| Category: | Bearings > slippery > flanged bushings > coiled bronze belt |
|---|---|
| Weight: | 0.068 kg |
| EAN: | 7316571397306 |

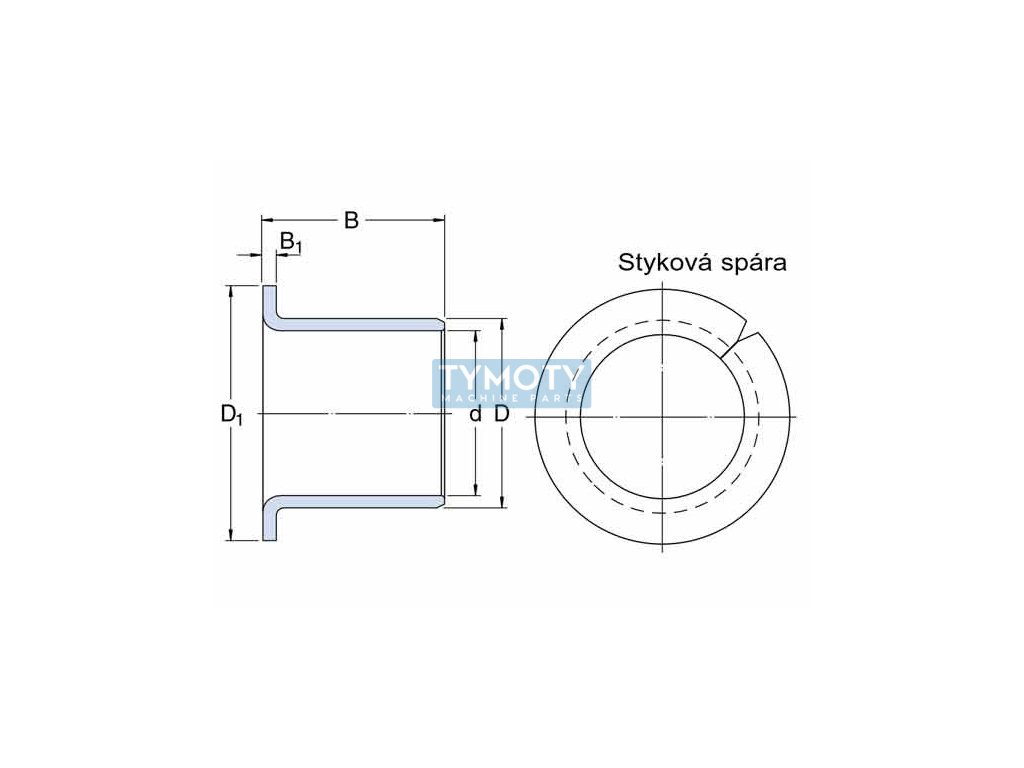

| Diameter D (mm): | 40, 44 |
| Diameter d1 (mm): | 55 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 25 |
| Width B1 (mm): | 2 |
| Značení: | PRMF 404425 |
| Typ: | přírubové kluzné pouzdro ze slinutého bronzového pásu |
