SKF PRMF 303430 sliding flange bushing, coiled bronze belt
Code: 309375
Product detailed description

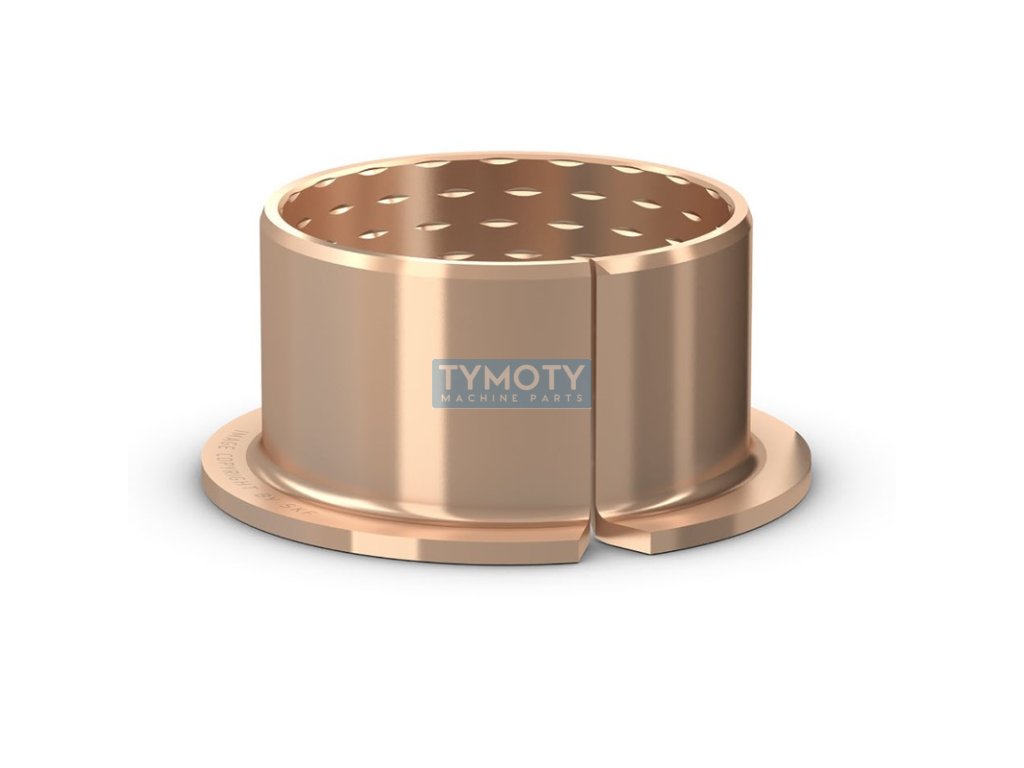

PRMF 303430 is a cylindrical flanged plain bushing rolled from bronze strip. The bronze strip is made of tin bronze CuSn8. The strips of this material are rolled into a cylinder and the working surface is provided with diamond pockets. These pockets then serve as lubricant reservoirs. These bushings are suitable for both radial and axial movement and withstand shock loads and vibrations well. They can be lubricated with oil and grease and are suitable for temperatures from -40 ° C to +150 ° C. 30x34x30/45x2Additional parameters
| Category: | Bearings > slippery > flanged bushings > coiled bronze belt |
|---|---|
| Weight: | 0.059 kg |
| EAN: | 7316571391328 |

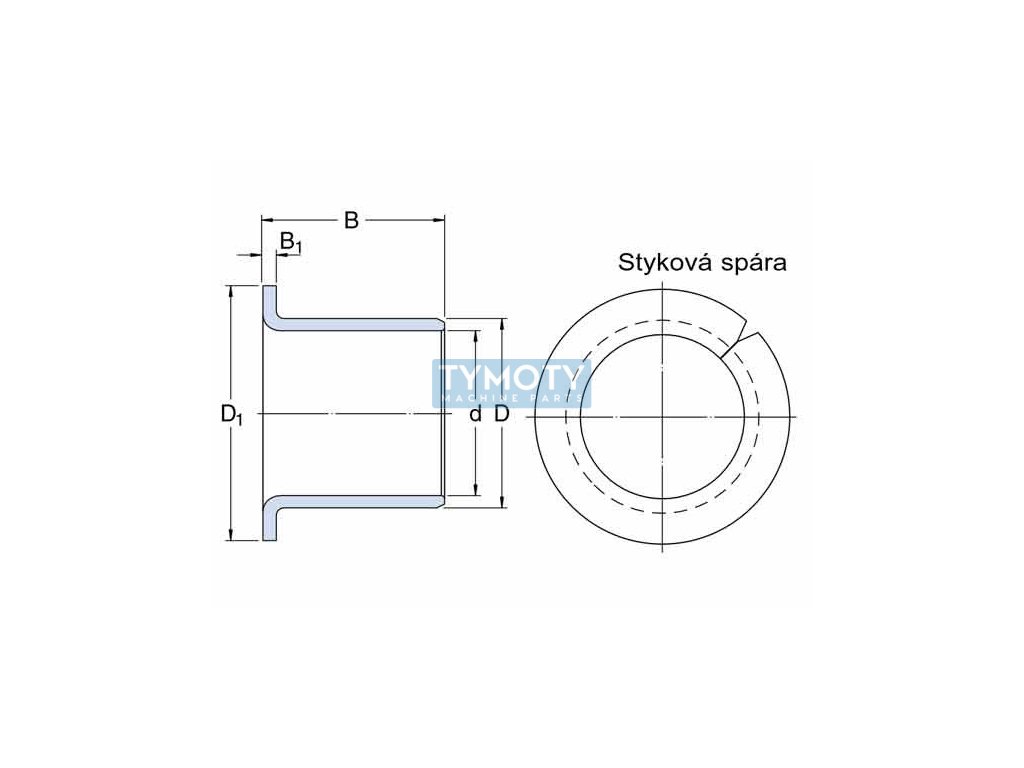

| Diameter D (mm): | 34, 30 |
| Diameter d1 (mm): | 45 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 30 |
| Width B1 (mm): | 2 |
| Značení: | PRMF 303430 |
| Typ: | přírubové kluzné pouzdro ze slinutého bronzového pásu |
