SKF PRMF 303420 sliding flange bushing, coiled bronze belt
Code: 309374
Product detailed description

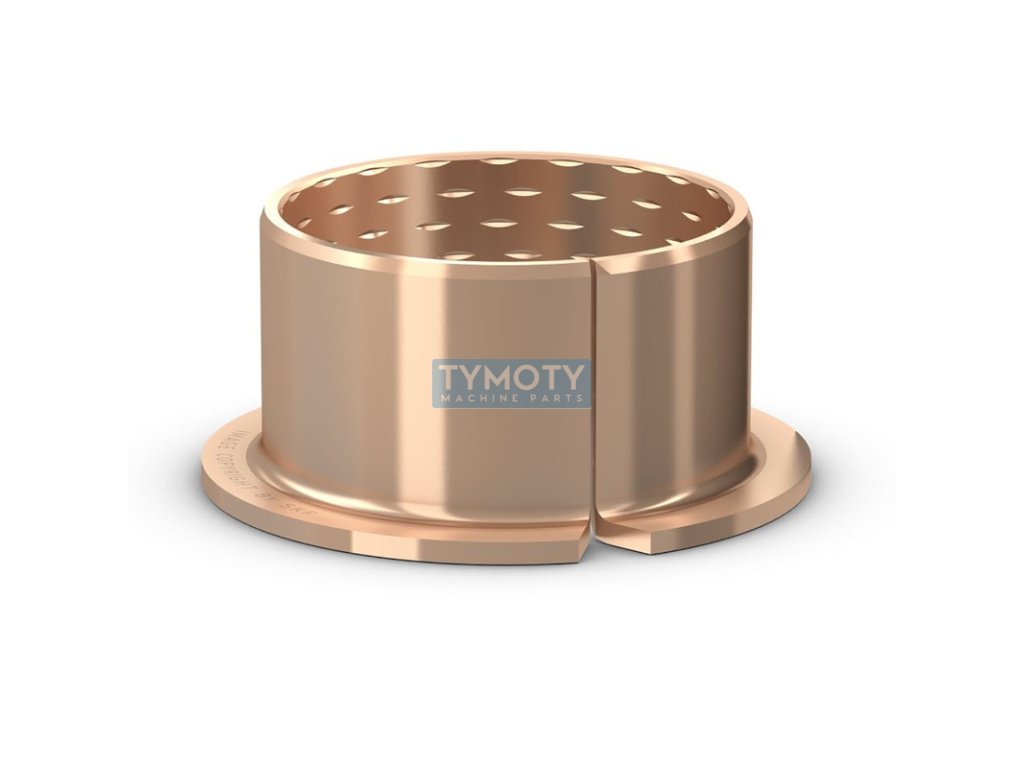

PRMF 303420 is a cylindrical flanged sliding bushing rolled from bronze strip. The bronze strip is made of tin bronze CuSn8. It withstands shock loads and vibrations well. They can be lubricated with oil and grease and are suitable for temperatures from -40 ° C to +150 ° C. 30x34x20/45x2Additional parameters
| Category: | Bearings > slippery > flanged bushings > coiled bronze belt |
|---|---|
| Weight: | 0.041 kg |
| EAN: | 7316571391311 |

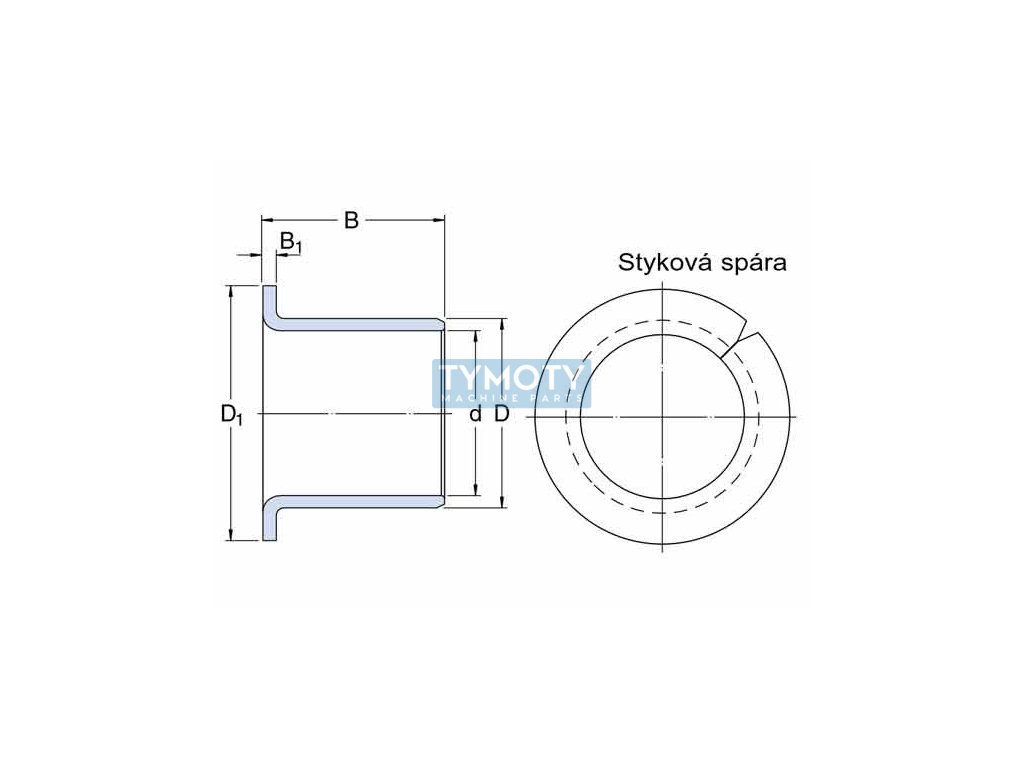

| Diameter D (mm): | 34, 30 |
| Diameter d1 (mm): | 45 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 20 |
| Width B1 (mm): | 2 |
| Značení: | PRMF 303420 |
| Typ: | přírubové kluzné pouzdro ze slinutého bronzového pásu |
