SKF PRMF 252815 bushing sliding flange, coiled bronze belt
Code: 309372
Product detailed description

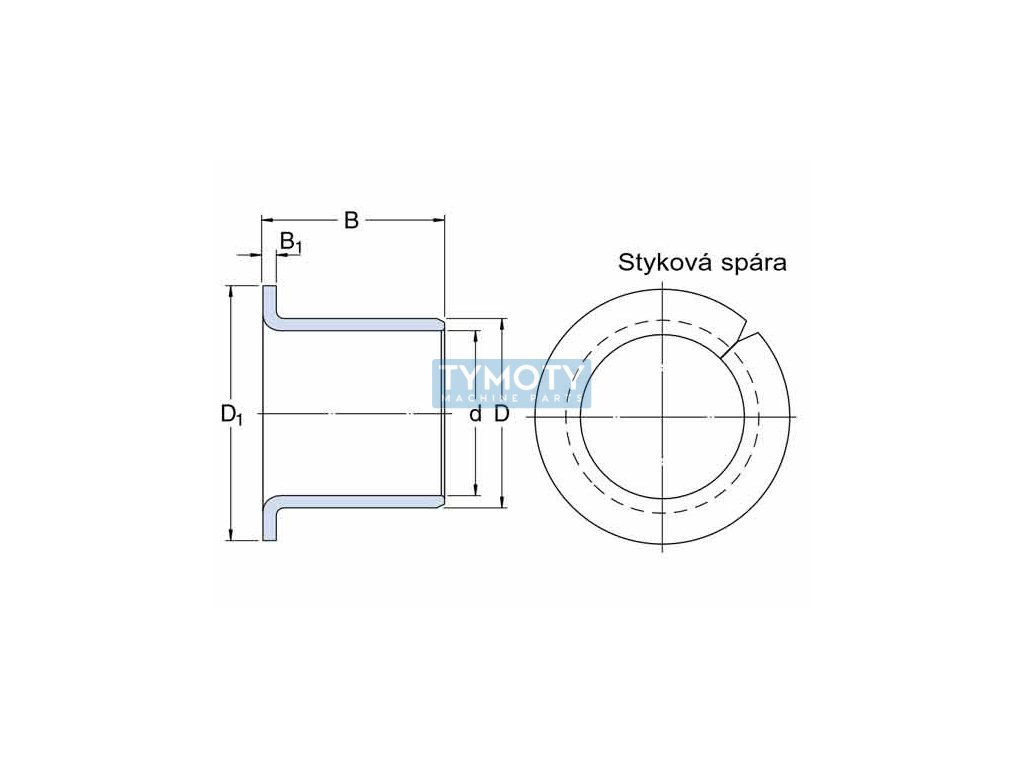

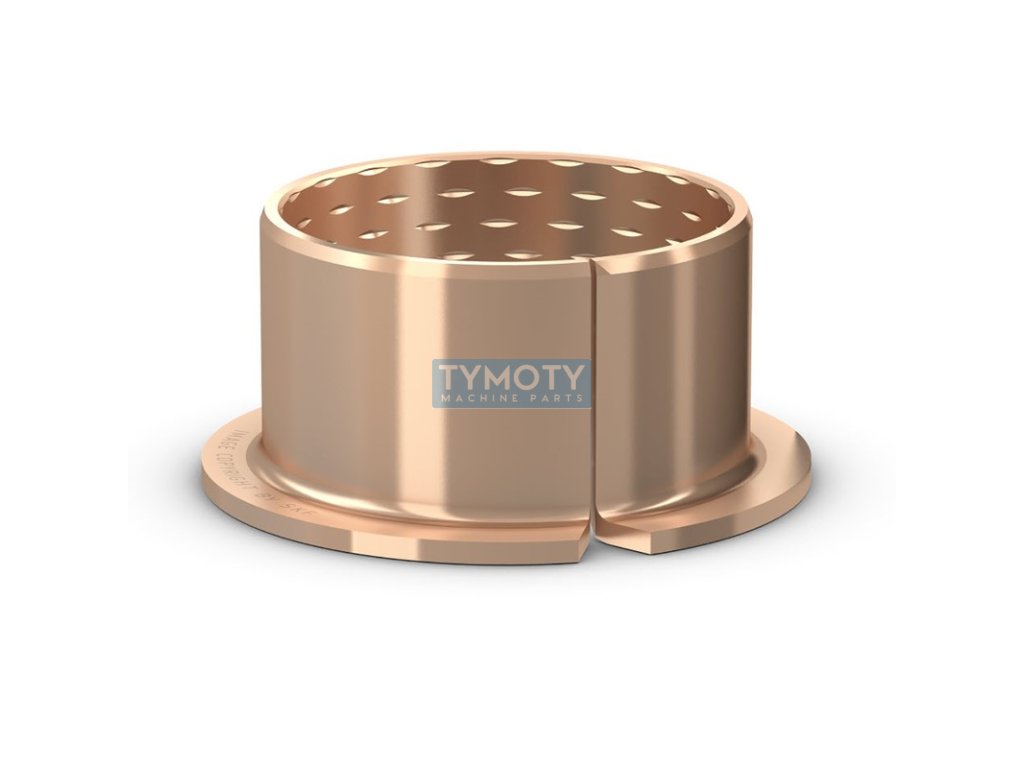

PRMF 252815 is a cylindrical flanged plain bushing rolled from bronze strip. The bronze strip is made of tin bronze CuSn8. The strips of this material are rolled into a cylinder and the working surface is provided with diamond pockets. These pockets then serve as lubricant reservoirs. These bushings are suitable for both radial and axial movement and withstand shock loads and vibrations well. They can be lubricated with oil and grease and are suitable for temperatures from -40 ° C to +150 ° C.25x28x15/35x1.5Additional parameters
| Category: | Bearings > slippery > flanged bushings > coiled bronze belt |
|---|---|
| Weight: | 0.018 kg |
| EAN: | 7316571391182 |
| Diameter D (mm): | 25, 28 |
| Diameter d1 (mm): | 35 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 15 |
| Width B1 (mm): | 1,5 |
| Značení: | PRMF 252815 |
| Typ: | přírubové kluzné pouzdro ze slinutého bronzového pásu |
