SKF PRM 505540 sliding bush, coiled bronze belt
Code: 309326
Product detailed description

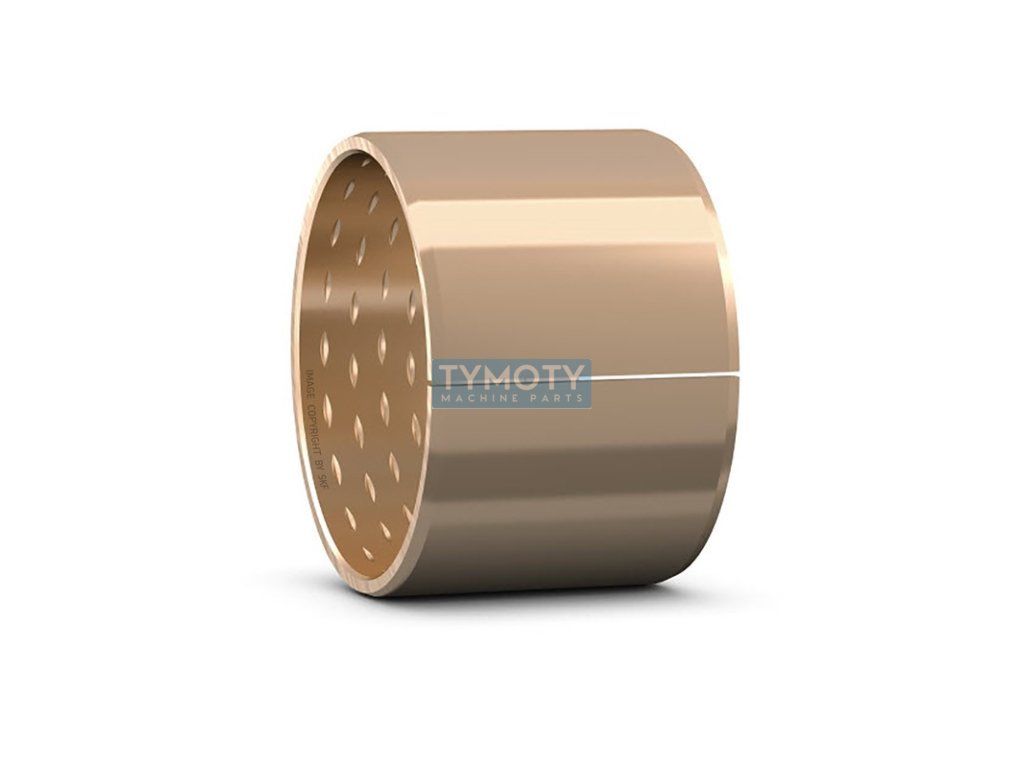

PRM 505540 is a cylindrical plain bearing rolled from a bronze strip. The bronze strip is made of tin bronze CuSn8. The strips of this material are rolled into a cylinder and the working surface is provided with diamond-shaped pockets. These pockets then serve as lubricant reservoirs. These bearings are suitable for both radial and axial movement and withstand shock loads and vibrations well. They can be lubricated with oil and grease and are suitable for temperatures from -40 ° C to +150 ° C.50x55x40Additional parameters
| Category: | Bearings > slippery > cases > coiled bronze belt |
|---|---|
| Weight: | 0.145 kg |
| EAN: | 7316571391366 |
| Diameter D (mm): | 55, 50 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | bronze |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -40 |
| Width B (mm): | 40 |
| Značení: | PRM 505540 |
| Typ: | kluzné pouzdro ze slinutého bronzového pásu |
